XS1M30MA250
Inductive sensor, XS, M30, brass, Sn 10 mm, cable 2 m, L60 mm
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Wiring configuration
2-wire
Sensor name
XS1
Device application
2-wire DC short-circuit protection
Sensor design
Cylindrical M30
Protection type
Short-circuit protection multi voltage
Size
60 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
24...210 V DC, 24...240 V AC 50/60 Hz
Output circuit type
AC/DC
Switching capacity in mA
5...300 mA AC with overload and short-circuit protection, 5...200 mA DC with overload and short-circuit protection
IP degree of protection
IP68 double insulation conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Cable composition
2 x 0.34 mm²
Residual current
1.5 mA open state
Status LED
Output state: 1 LED (yellow), supply on: 1 LED (green)
Wire insulation material
PVC
Switching frequency
<= 2000 Hz DC, <= 25 Hz AC
Voltage drop
<5.5 V (closed state)
Delay first up
70 MILLISECOND
Delay response
2 MILLISECOND
Marking
CE
Delay recovery
5 MILLISECOND
Product certifications
CCC
CSA
UL
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-7
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.2 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
4.1 CENTIMETER
Package 1 weight
0.19 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
8.832 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
4.1 CENTIMETER
Package 3 width
13.2 CENTIMETER
Package 3 length
9.5 CENTIMETER
Package 3 weight
0.207 KILOGRAM
Indivisible sale quantity
1
Expand all
Technical Drawings

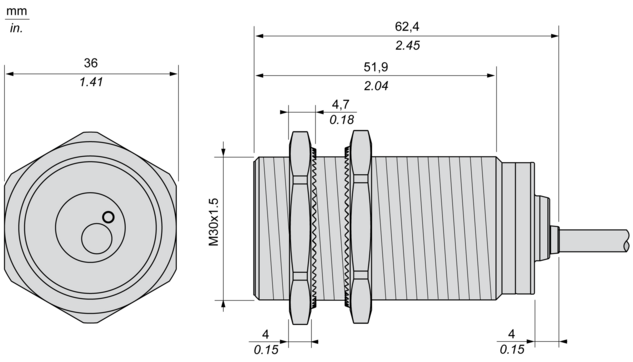

Dimensions
Minimum Mounting Distances
Wiring Schemes
2-Wire AC or DC
Performance Curves
Standard Steel Target : 30x30x1 mm
