XS1M30MA250K
Inductive proximity sensors XS, inductive sensor XS1 M30, L72mm, brass, Sn10mm, 24...240VAC/DC, 1/2"
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Wiring configuration
2-wire
Output circuit type
AC/DC
Protection type
Short-circuit protection multi voltage
Device application
2-wire DC short-circuit protection
Sensor name
XS1
Sensor design
Cylindrical M30
Size
72 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Metal
Type of output signal
Discrete
Wiring technique
2-wire
[Sn] nominal sensing distance
10 mm
Discrete output function
1 NO
Electrical connection
Male connector 1/2"20 UNF, 3 pins
[Us] rated supply voltage
24...210 V DC
24...240 V AC 50/60 Hz
24...240 V AC 50/60 Hz
Switching capacity in mA
5...300 mA AC with overload and short-circuit protection
5...200 mA DC with overload and short-circuit protection
5...200 mA DC with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Thread type
M30 x 1.5
Detection face
Frontal
Front material
PPS
Enclosure material
Nickel plated brass
Operating zone
0…8 mm
Differential travel
1...15% of Sr
Status LED
Output state: 1 LED (yellow)
Supply on: 1 LED (green)
Supply on: 1 LED (green)
Supply voltage limits
20…264 V AC/DC
Maximum residual current
1.5 mA open state
Switching frequency
<= 2000 Hz DC
<= 25 Hz AC
<= 25 Hz AC
Maximum voltage drop
<5.5 V (closed state)
Maximum delay first up
70 ms
Maximum delay response
2 ms
Maximum delay recovery
5 ms
Marking
CE
Threaded length
51 mm
Length
72 mm
Net weight
0.145 kg
Product certifications
CSA
UL
CCC
UL
CCC
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-7
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.200 cm
Package 1 Width
7.600 cm
Package 1 Length
11.900 cm
Package 1 Weight
152.000 g
Unit Type of Package 2
S01
Number of Units in Package 2
12
Package 2 Height
15 cm
Package 2 Width
15 cm
Package 2 Length
40 cm
Package 2 Weight
2.160 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Circularity Profile
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

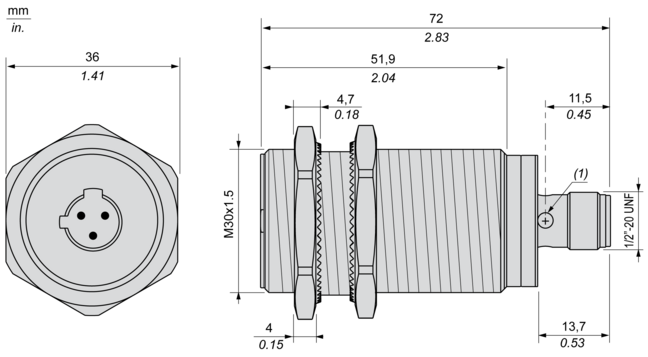

Dimensions
(1) : LED
Minimum Mounting Distances
Side by side
e (1) ≥ 20 mm/0.79 in
Face to face
e (2) ≥ 120 mm/4.72 in
Facing a metal object
e (3) ≥ 30 mm/1.18 in.
Wiring Schemes
1/2"-20UNF
1 : Grounding
2 : AC
3 : AC
NO output
Performance Curves
Standard Steel Target : 30x30x1 mm
(1) Pick-up points
(2) Drop-out points (object approaching from the side)
(y) Sensing distance in mm
Expand all
Documents & Downloads
Document name
Date
Size
11/23/2023
18.7 MB
2/10/2024
19.1 MB
4/30/2024
24.3 MB
Document name
Date
Size
11/29/2023
195.3 kB
11/29/2023
195.3 kB
Document name
Date
Size
11/29/2023
122.2 kB
