XS1N05PA311LS01
Inductive sensor, XS1, M5, stainless steel, Sn 0.8 mm, PNP, NO, M8 connector, L28 mm
END OF COMMERCIALISATION End of commercialization date : November 03rd 2020 End of service date : January 29th 2021
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS1
Device application
Not applicable
Sensor design
Cylindrical M5
Size
28 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Stainless steel
Electrical connection
Remote male connector M8, 3 pins
[Us] rated supply voltage
5...24 V DC
Output circuit type
DC
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Stainless steel 303
Detection face
Frontal
Thread type
M5 x 0.5
Front material
PPS
Sensing range
> 0...2.5 mm
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 5000 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
5 MILLISECOND
Delay response
1 MILLISECOND
Marking
CE
Delay recovery
1 MILLISECOND
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
8.2 CENTIMETER
Package 1 length
14.8 CENTIMETER
Package 1 weight
52 GRAM
Expand all
Technical Drawings

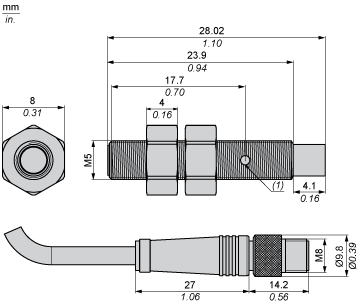

Dimensions
- (1) LED
Minimum Mounting Distances in mm
- e (1) ≥ 2 mm/0.79 in.
- e (1) ≥ 2 mm/0.79 in.
- e (2) ≥ 12 mm/0.47 in.
- e (1) ≥ 2 mm/0.79 in.
- e (2) ≥ 12 mm/0.47 in.
- e (3) ≥ 3 mm/0.12 in.
- e (1) ≥ 2 mm/0.79 in.
- e (2) ≥ 12 mm/0.47 in.
- e (3) ≥ 3 mm/0.12 in.
- d ≥ 5 mm/0.17 in.
- h ≥ 0 mm/0 in.
Wiring Schemes
Performance Curves
Standard Steel Target (mm) : 5x5x1
- Pick-up points
- Drop-out points (object approaching from the side)
- (y) Sensing distance in mm
