Datasheet

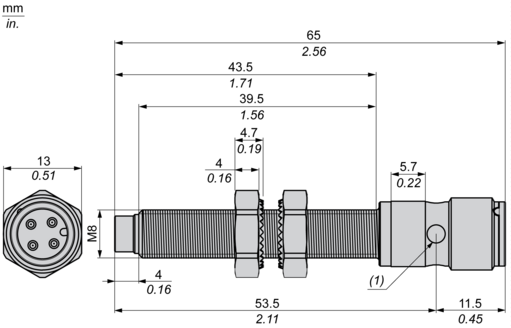

Technical Drawings
(1) LED
Side by side
e (1) ≥ 10 mm/0.39 in.
Face to face
e (2) ≥ 30 mm/1.18 in.
Facing a metal object
e (3) ≥ 7.5 mm/0.30 in.
Mounted in a metal support
d ≥ 24 mm/0.94 in.
h ≥ 5 mm/0.20 in.
PNP 4-wire
BU : Blue
BN : Brown
BK : Black
WH : White
