Datasheet
Technical Drawings
Side by side
e (1) ≥ 16 mm/0.63 in.
Face to face
e (2) ≥ 48 mm/1.89 in.
Facing a metal object
e (3) ≥ 12 mm/0.47 in.
Mounted in a metal support
d ≥ 36 mm/1.42 in.
h ≥ 8 mm/0.31 in.
(1) Bending cable: 4 x external cable diameter
Output current | Load impedance value | Output voltage | Load impedance value | |
---|---|---|---|---|
24 V | 0...10 mA | R ≤ 1500 Ω | 0...10 V | R = 1000 Ω |
48 V | 0...10 mA | R ≤ 3300 Ω | 0...10 V | R = 1000 Ω |
Ensure a minimum of 5 V between the + and the sensor output (terminal 4). |
3-Wire connection
(1) Voltage output
BN : Brown
BK : Black
BU : Blue

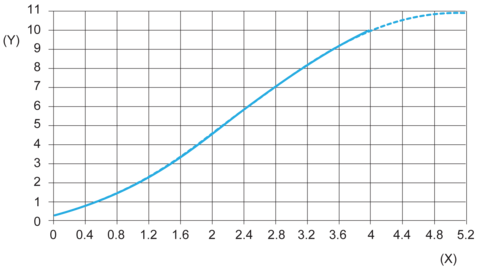

(Y) Is (mA)
(X) Sensors - object distance (mm)
