Datasheet

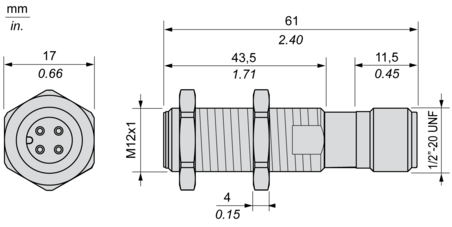

Technical Drawings
Side by side
e (1) ≥ 16 mm/0.63 in.
Face to face
e (2) ≥ 48 mm/1.89 in.
Facing a metal object
e (3) ≥ 12 mm/0.47 in.
Mounted in a metal support
d ≥ 36 mm/1.42 in.
h ≥ 8 mm/0.31 in.
1/2"-20UNF
1 : Grounding
2 : AC
3 : AC
NO output
Standard Steel Target : 12x12x1 mm
(1) Pick-up points
(2) Drop-out points (object approaching from the side)
(y) Sensing distance in mm
