XS4P12MA230LD

Inductive proximity sensors XS, inductive sensor XS4 M12, L52mm, PPS, Sn4mm, 24...240VAC/DC, M12 0.8 m

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Inductive proximity sensors XS
Sensor type
Inductive proximity sensor
Sensor name
XS4
Series name
General purpose
Thread type
M12 x 1
Enclosure material
PPS
Sensor design
Cylindrical M12
Electrical connection
Remote male connector M12, 4 pins
Material
Plastic
Body type
Fixed
Wiring technique
2-wire
Size
52 mm
Discrete output function
1 NO
Type of output signal
Discrete
Detector flush mounting acceptance
Non flush mountable
Front material
PPS
IP degree of protection
IP67 conforming to IEC 60529
Output circuit type
AC/DC
Delay response
0.2 MILLISECOND
[Us] rated supply voltage
24...240 V AC/DC 50/60 Hz
Switching capacity in mA
5...200 mA AC/DC
Product certifications
CCC
CSA
UL
Status LED
Output state: 1 LED (yellow)
Marking
CE
Detection face
Frontal
Voltage drop
<5.5 V (closed)
Sensing range
> 2.5...4 mm
Differential travel
1...15 % of Sr
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Switching frequency
<= 25 Hz AC, <= 3000 Hz DC
Delay first up
40 MILLISECOND
Delay recovery
0.2 MILLISECOND
Residual current
0.6 mA open state
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
8.2 CENTIMETER
Package 1 length
13.3 CENTIMETER
Package 1 weight
0.074 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.19 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
4.5 CENTIMETER
Package 3 width
13.3 CENTIMETER
Package 3 length
8.2 CENTIMETER
Package 3 weight
0.074 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

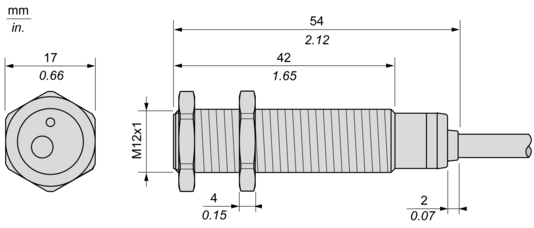

Dimensions

epds

Minimum Mounting Distances

epds
epds
epds
epds

Performance Curves

Standard Steel Target : 12x12x1 mm

epds
