XS4P18AB110
Inductive proximity sensors XS, inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 24...48 VDC, cable 2 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XS4
Sensor design
Cylindrical M18
Size
41 mm
Body type
Fixed
Type of output signal
Analogue
Wiring technique
3-wire
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Analogue output range
0...10 V
Electrical connection
Cable
[Us] rated supply voltage
24...48 V DC
Output circuit type
DC
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
PBT
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
> 4...8 mm
Linearity error
+/- 2 mA
Repeat accuracy
<= 3% of Sr
Cable composition
3 x 0.34 mm²
Wire insulation material
PVC
Switching frequency
<= 500 Hz
Output current drift
10 PERCENTAGE
Current consumption
4 mA no-load
Marking
CE
Product certifications
CCC
CSA
UL
CSA
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.2 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
4.1 CENTIMETER
Package 1 weight
0.081 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.07 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
4.1 CENTIMETER
Package 3 width
13.2 CENTIMETER
Package 3 length
9.5 CENTIMETER
Package 3 weight
0.097 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Minimum Mounting Distances
Mounting
Wiring Schemes

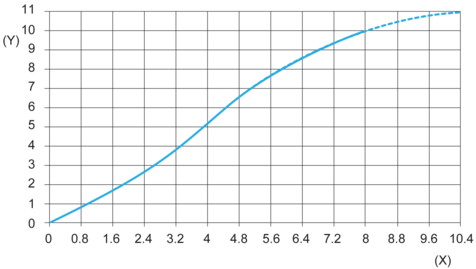

Output Curves
