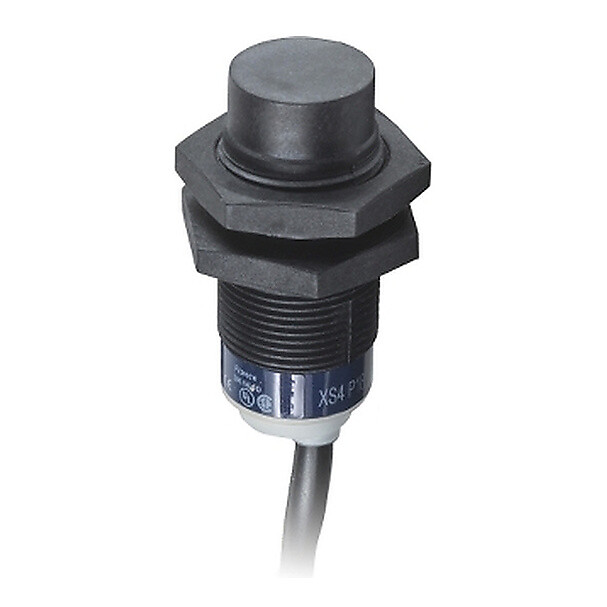

XS4P18AB120L2
Inductive proximity sensors XS, inductive sensor XS4 M18, L40.6 mm, PBT, Sn8mm, 12...24 VDC, cable 10 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XS4
Sensor design
Cylindrical M18
Size
41 mm
Body type
Fixed
Type of output signal
Analogue
Wiring technique
2-wire
Enclosure material
PBT
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC
IP degree of protection
IP67 conforming to IEC 60529
Analogue output range
4...20 mA
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Output circuit type
DC
Detection face
Frontal
Thread type
M18 x 1
Sensing range
> 4...8 mm
Front material
PPS
Repeat accuracy
<= 3% of Sr
Linearity error
+/- 2 mA
Wire insulation material
PvR
Cable composition
3 x 0.34 mm²
Switching frequency
<= 500 Hz
Current consumption
4 mA no-load
Output current drift
10 PERCENTAGE
Marking
CE
Product certifications
CSA
UL
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.3 CENTIMETER
Package 1 width
8 CENTIMETER
Package 1 length
8.2 CENTIMETER
Package 1 weight
0.505 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
505 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
8.2 CENTIMETER
Package 3 width
13.3 CENTIMETER
Package 3 length
8 CENTIMETER
Package 3 weight
0.505 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
