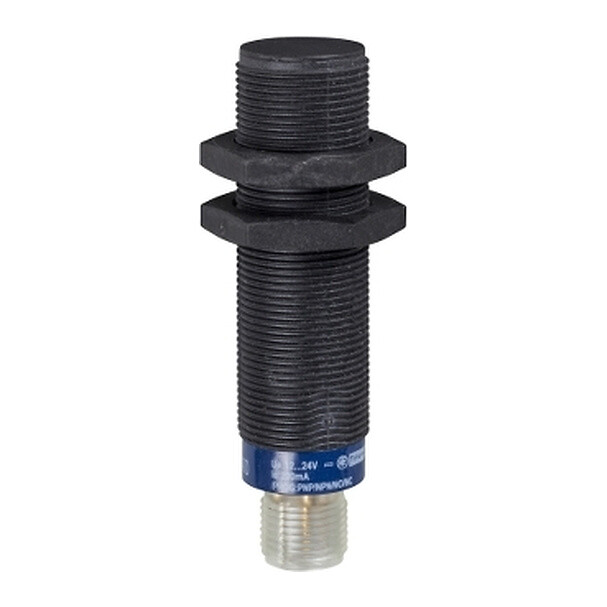

XS4P18PA370D
Inductive sensor, XS4, M18, PPS, Sn 8 mm, PNP, NO, M12 connector, L70 mm, 12...48 VDC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor name
XS4
Sensor type
Inductive proximity sensor
Sensor design
Cylindrical M18
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Fixed
Material
Plastic
Front material
PPS
Enclosure material
PPS
[Sn] nominal sensing distance
8 mm
Wiring technique
3-wire
Detector flush mounting acceptance
Non flush mountable
Delay response
0.15 ms
Thread type
M18 x 1
Product certifications
CCC
CSA
UL
CSA
UL
Marking
CE
Indivisible sale quantity
1
Sensing range
> 4...8 mm
Electrical connection
Male connector M12, 4 pins
Supply voltage limits
10-58 V DC
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA DC with overload and short-circuit protection
Voltage drop
<2 V (closed)
Current consumption
0...10 mA no-load
Status LED
Output state: 1 LED (yellow)
Output circuit type
DC
Type of output signal
Discrete
Detection face
Frontal
Discrete output type
PNP
Discrete output function
1 NO
Switching frequency
<= 2000 Hz
Differential travel
1...15 % of Sr
Delay first up
10 ms
Delay recovery
0.35 ms
Threaded length
52 mm
Height
18 mm
Length
70 mm
Size
70 mm
Product weight
0.04 kg
IP degree of protection
IP67 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916014899
Package 1 height
2 cm
Package 1 width
10 cm
Package 1 length
12 cm
Package 1 weight
0.035 kg
Unit type of package 2
S02
Number of units in package 2
44
New Package 2 GTIN 14
13666916014896
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
1.882 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916014893
Package 3 height
4.2 cm
Package 3 width
6.6 cm
Package 3 length
9.5 cm
Package 3 weight
0.041 kg
Expand all
Technical Drawings
Dimensions
Minimum Mounting Distances
Wiring Schemes
Performance Curves
Standard Steel Target : 24x24x1 mm
