XS4P30AB110
Inductive proximity sensors XS, inductive sensor XS4 M30, L53mm, PBT, Sn15mm, 24...48 VDC, cable 2 m
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Electrical circuit type
Analog output
Sensor name
XS4
Sensor design
Cylindrical M30
Size
53 mm
Body type
Fixed
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Type of output signal
Analogue
Wiring technique
3-wire
[Sn] nominal sensing distance
15 mm
Output circuit type
DC
Analogue output range
0...10 V
Electrical connection
Cable
Cable length
2 m
[Us] rated supply voltage
24...48 V DC
IP degree of protection
IP67 conforming to IEC 60529
Thread type
M30 x 1.5
Detection face
Frontal
Front material
PPS
Enclosure material
PBT
Operating zone
1.5…15 mm
Repeat accuracy
<= 3% of Sr
Linearity error
+/- 2 mA
Cable composition
3 x 0.34 mm²
Wire insulation material
PVC
Supply voltage limits
15…58 V DC
Switching frequency
<= 300 Hz
Current consumption
4 mA no-load
Maximum output current drift
10 %
Marking
CE
Threaded length
32 mm
Height
30 mm
Length
53 mm
Net weight
0.1 kg
Product certifications
CSA
UL
CCC
UL
CCC
Ambient air temperature for operation
-25…70 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.200 cm
Package 1 Width
12.700 cm
Package 1 Length
13.000 cm
Package 1 Weight
127.000 g
Unit Type of Package 2
S02
Number of Units in Package 2
22
Package 2 Height
15 cm
Package 2 Width
30 cm
Package 2 Length
40 cm
Package 2 Weight
3.080 kg
Sustainable offer status
Green Premium product
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Circularity Profile
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

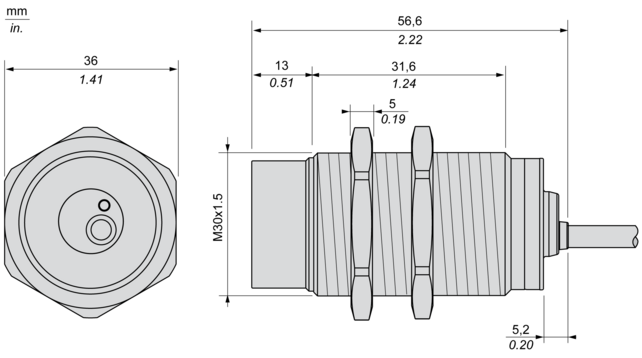

Dimensions
Minimum Mounting Distances
Side by side
e (1) ≥ 60 mm/2.36 in.
Face to face
e (2) ≥ 180 mm/7.09 in.
Facing a metal object
e (3) ≥ 45 mm/1.77 in.
Mounted in a metal support
d ≥ 90 mm/3.54 in.
h ≥ 30 mm/1.18 in.
Wiring Schemes
| Output current | Load impedance value | Output voltage | Load impedance value | |
|---|---|---|---|---|
| 24 V | 0...10 mA | R ≤ 1500 Ω | 0...10 V | R = 1000 Ω |
| 48 V | 0...10 mA | R ≤ 3300 Ω | 0...10 V | R = 1000 Ω |
| Ensure a minimum of 5 V between the + and the sensor output (terminal 4). |
3-Wire connection
(1) Voltage output
BN : Brown
BK : Black
BU : Blue

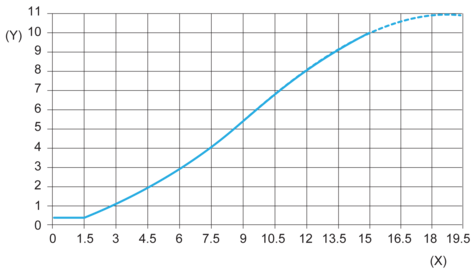

Output Curves
(Y) Is (mA)
(X) Sensors - object distance (mm)
