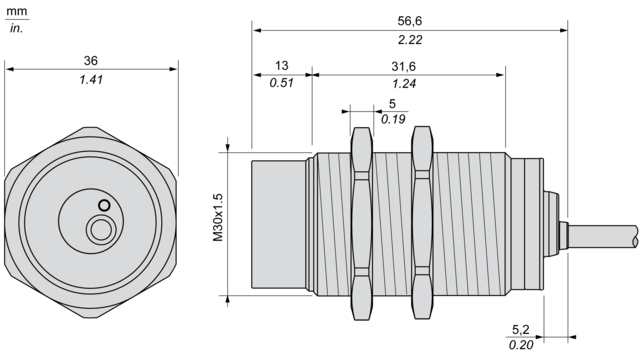

Technical Drawings
Side by side
e (1) ≥ 60 mm/2.36 in.
Face to face
e (2) ≥ 180 mm/7.09 in.
Facing a metal object
e (3) ≥ 45 mm/1.77 in.
Mounted in a metal support
d ≥ 90 mm/3.54 in.
h ≥ 30 mm/1.18 in.
Output current | Load impedance value | |
---|---|---|
12 V | 4...20 mA | R ≤ 8.2 Ω |
24 V | 4...20 mA | R ≤ 470 Ω |
Ensure a minimum of 10 V between the + and the - (terminal 3) of the sensor. |
2-Wire connection
(1) Output current
BN : Brown
BK : Black
BU : Blue

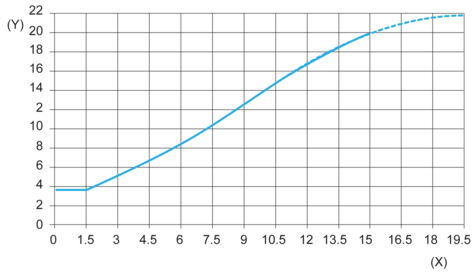

(Y) Is (mA)
(X) Sensors - object distance (mm)
