XS518B1DAL2
Inductive proximity sensors XS, inductive sensor XS5 M18, L56mm, brass, Sn5mm, 12..48VDC, cable 2m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS5
Device application
Not applicable
Sensor design
Cylindrical M18
Size
56 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
12...48 V DC
Output circuit type
DC
Switching capacity in mA
1.5...100 mA DC with overload and short-circuit protection
IP degree of protection
IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
> 4...8 mm
Differential travel
1...15 % of Sr
Cable composition
2 x 0.34 mm²
Residual current
0.5 mA open state
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 3000 Hz
Voltage drop
<4 V (closed)
Delay first up
10 MILLISECOND
Delay response
0.15 MILLISECOND
Marking
CE
Delay recovery
0.2 MILLISECOND
Product certifications
CCC
CSA
UL
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
10 CENTIMETER
Package 1 length
13.5 CENTIMETER
Package 1 weight
0.098 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.729 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
4.2 CENTIMETER
Package 3 width
9.7 CENTIMETER
Package 3 length
13.2 CENTIMETER
Package 3 weight
0.114 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

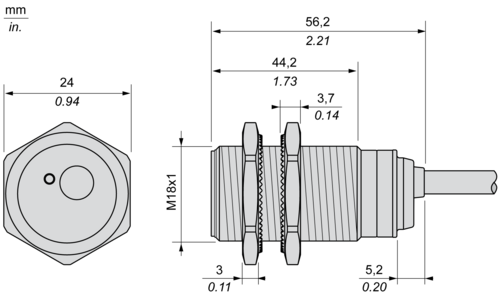

Dimensions
