XS604R1NAL2

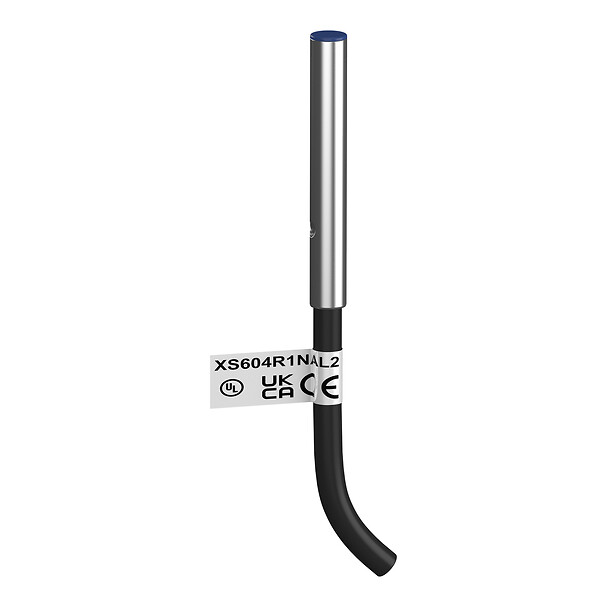

Miniature inductive sensor, D4 plain, L31mm, stainless, Sn1.5mm, cable 2m

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Inductive proximity sensors XS
Series name
Miniature
Sensor type
Inductive proximity sensor
Sensor name
XS6
Sensor design
Cylindrical Ø 4 mm plain
Size
30.2 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Quasi flush mountable
Discrete output type
NPN
Material
Stainless steel
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 100 mA DC with overload and short-circuit protection
IP degree of protection
IP67
Enclosure material
Stainless steel 303
Detection face
Frontal
Front material
PBT
Sensing range
> 0...2.5 mm
Differential travel
1...20 % of Sr
Cable composition
3 x 0.14 mm²
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 5000 Hz
Voltage drop
<1.5 V
Current consumption
<= 10 mA no-load
Delay first up
50 MILLISECOND
Marking
CE
UKCA
Product certifications
UL
Package 1 height
20 CENTIMETER
Package 1 width
1 CENTIMETER
Package 1 length
10 CENTIMETER
Package 1 weight
33 KILOGRAM
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.95 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
