XS618B2PAL01M12

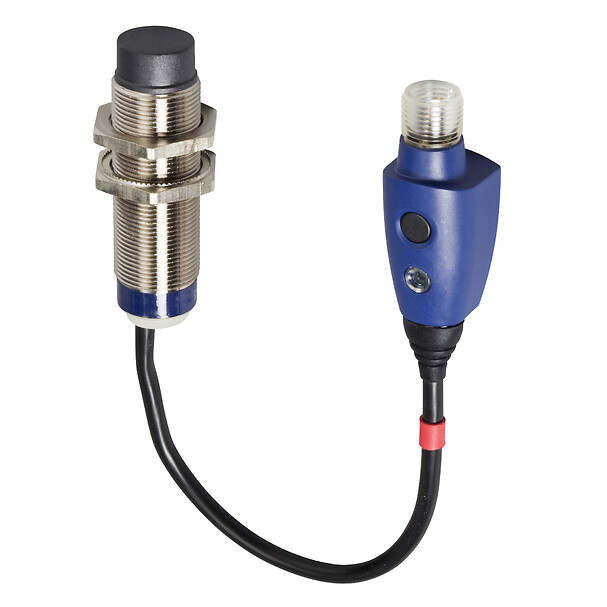

Inductive proximity sensors XS, inductive sensor XS6 M18, L64mm, brass, Sn9mm, 12...24 VDC, M12 0.15 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XS6
Sensor design
Cylindrical M18
Size
64 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Non flush mountable
Discrete output type
PNP
Material
Metal
Electrical connection
Remote male connector M12, 4 pins
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 100 mA DC with overload and short-circuit protection
IP degree of protection
IP67 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Cable composition
3 x 0.34 mm²
Status LED
Supply on and teach mode: 1 LED (green), output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 1000 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
10 MILLISECOND
Delay response
0.3 MILLISECOND
Marking
CE
Delay recovery
0.7 MILLISECOND
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.2 CENTIMETER
Package 1 length
13.2 CENTIMETER
Package 1 weight
84 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.148 KILOGRAM
Indivisible sale quantity
1
