XS630B4PAM12

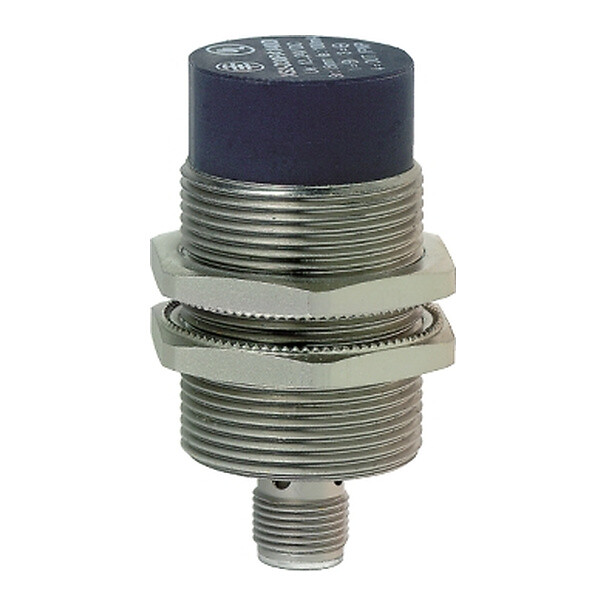

Inductive sensor, XS6, M30, brass, Sn 22 mm, PNP, NO, M12 connector, L74 mm, 12...48 VDC, non-flush, 3 wires
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor name
XS6
Sensor type
Inductive proximity sensor
Sensor design
Cylindrical M30
Device application
Mobile equipment
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Fixed
Material
Metal
Front material
PPS
Enclosure material
Nickel plated brass
[Sn] nominal sensing distance
22 mm
Wiring technique
3-wire
Detector flush mounting acceptance
Non flush mountable
Delay response
0.6 ms
Thread type
M30 x 1.5
Product certifications
CSA
E2
UL
E2
UL
Marking
CE
Indivisible sale quantity
1
Sensing range
> 15...40 mm
Electrical connection
Male connector M12, 4 pins
Supply voltage limits
10-58 V DC
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA DC with overload and short-circuit protection
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Status LED
Output state: 1 LED (yellow)
Output circuit type
DC
Type of output signal
Discrete
Detection face
Frontal
Discrete output type
PNP
Discrete output function
1 NO
Switching frequency
<= 500 Hz DC
Differential travel
1...15 % of Sr
Delay first up
10 ms
Delay recovery
1.4 ms
Threaded length
41 mm
Length
74 mm
Size
74 mm
Product weight
0.145 kg
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916011621
Package 1 height
4 cm
Package 1 width
6.5 cm
Package 1 length
9.5 cm
Package 1 weight
0.141 kg
Unit type of package 2
S01
Number of units in package 2
22
New Package 2 GTIN 14
13666916011628
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
3.289 kg
New Package 3 GTIN 14
23666916011625
Expand all
Technical Drawings

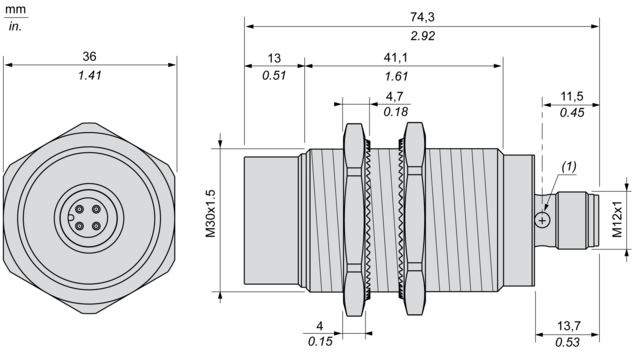

Dimensions
