XS7T2PC440

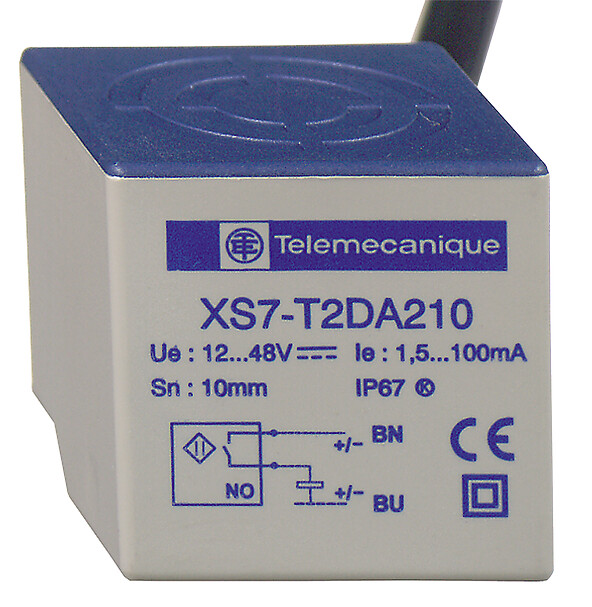

Inductive sensor, XS7, 26x26x26 mm, plastic, Sn 10 mm, cable 2 m, form E, 12...48 VDC
END OF COMMERCIALISATION End of commercialization date : January 12th 2022 End of service date : January 12th 2022
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Product specific application
Not applicable
Sensor name
XS7
Sensor design
Cubic form 26 x 26 x 26
Size
26 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Type of output signal
Discrete
Wiring technique
4-wire
Output circuit type
DC
Discrete output function
1 NO + 1 NC
Discrete output type
PNP
Electrical connection
Cable
Switching capacity in mA
<= 200 mA
[Us] rated supply voltage
12...48 V DC
IP degree of protection
IP67
Enclosure material
Plastic
Detection face
5 positions turret head
Front material
Plastic
Sensing range
8...15 mm
Cable composition
4 x 0.34 mm²
Wire insulation material
PVC
Switching frequency
<= 1000 Hz
Marking
CE
Product certifications
CCC
CSA
UL
CSA
UL
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
