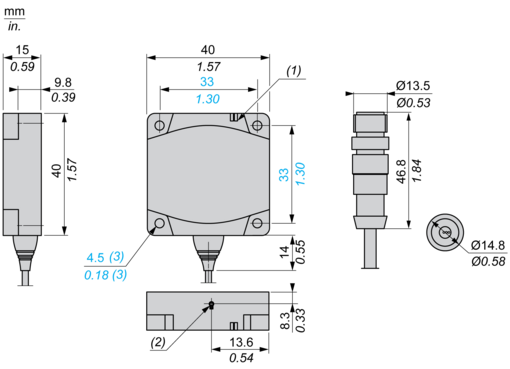

Technical Drawings
(1) LED
(2) Teach mode button
(3) For CHC type screws
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
e (1) | e (2) | e (3) | |
---|---|---|---|
Flush mounted | 60 | 120 | 15 |
Not flush mounted | 125 | 250 |
Side by Side
Face to Face
Facing a Metal Object
2-Wire NO Output
2-Wire NO Output
1/2"-20UNF
