XS8C4A1PCP20EX

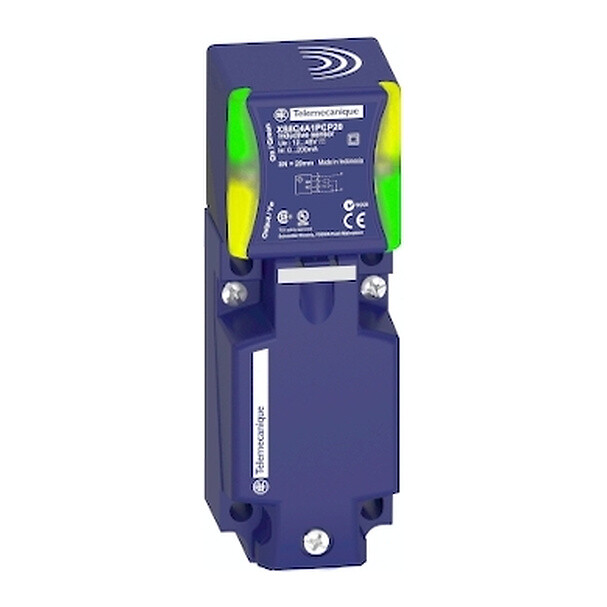

Inductive proximity sensors XS for hazardous area dust, 40x40x117, Sn20 mm, 12..48VDC, NO+NC, terminals
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Device application
ATEX dust
Sensor name
XS8
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
4-wire
Discrete output function
1 NO + 1 NC
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Screw-clamp terminals, 4 x 1.5 mm²
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Safety level
SIL 2 conforming to IEC 61508, PL = d conforming to ISO 13849-1, SILCL 2 conforming to IEC 62061
Safety reliability data
MTTFd = 1546 years, PFHd = 7.4E-8 1/h, SFF = 92 %, DC = 75 % with appropriate safety controller
Detection face
5 positions turret head
Front material
PBT
Sensing range
> 15...40 mm
Differential travel
3...15% of Sr
Repeat accuracy
<= 3% of Sr
Status LED
Supply on: 1 LED (green), output state: 1 LED (yellow)
Switching frequency
<= 300 Hz
Voltage drop
<2 V (closed)
Current consumption
0...15 mA no-load
Delay first up
7.5 MILLISECOND
Delay response
1.2 MILLISECOND
Delay recovery
1.8 MILLISECOND
Marking
II2 D-Ex tb IIIC T85°C Db IP67
Environmental characteristic
Hazardous location
Standards
IEC 60079-0
IEC 60079-31
IEC 60079-31
Directives
2014/34/EU - ATEX directive
Product certifications
IEC-Ex INE 16.0047X
INERIS 16ATEX0037X
INERIS 16ATEX0037X
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Dust zone
Zone 21 - 22
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
14 CENTIMETER
Package 1 weight
0.244 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) 2 holes Ø 5,45 mm / Ø 0.21 in. (Tightening torque: < 1,5 Nm / < 13.3 Ib-in.)
- (2) 3 screws M3,5. (Tightening torque: < 1,2 Nm / < 10.6 Ib-in.)
- (3) 2 elongated holes 5,4 x 7,4 mm / 0.21 x 0.29 in. (Tightening torque: < 1,5 Nm / < 13.3 Ib-in.)
- (4) Hazardous area certified cable gland, (Tightening torque: < 4 Nm / < 35.4 Ib-in.)
Mounting
Head Positions
Setting-up Precautions
Minimum Mounting Distances (mm)
- e (1) ≥ 80
Minimum Mounting Distances (mm)
- e (1) ≥ 80
- e (2) ≥ 160
Minimum Mounting Distances (mm)
- e (1) ≥ 80
- e (2) ≥ 160
- e (3) ≥ 60
Wiring Schemes
4-Wire DC
SIL 2 Wiring Scheme
With Preventa XPSMF40 Safety PLC
- SFF : (Safe Failure Fraction): 92,68 %
- DC : (Diagnosis Coverage): 75,8 %
