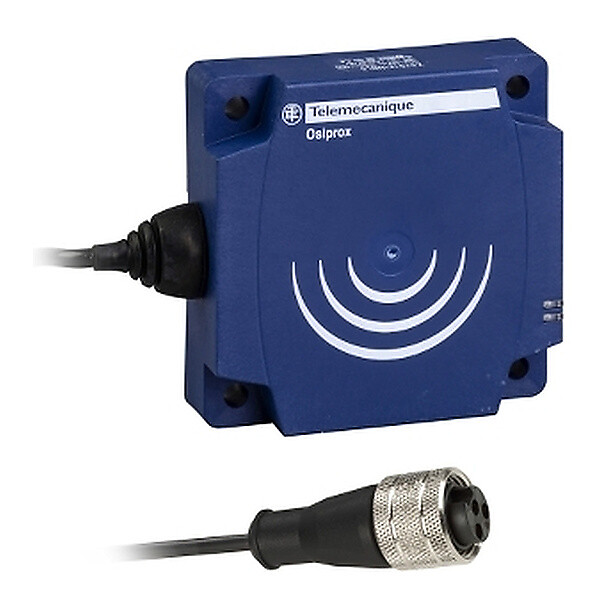

XS8D1A1MAU20
Inductive proximity sensors XS, inductive sensor XS8 80x80x26, PBT, Sn60mm, 24...240VAC/DC, 1/2"
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS8
Sensor design
Flat form 80 x 80 x 26
Size
26 mm
Body type
Fixed
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Electrical connection
Male connector 1/2"20 UNF, 3 pins
[Us] rated supply voltage
24...240 V AC/DC 50/60 Hz
IP degree of protection
IP67 double insulation conforming to IEC 60529
Switching capacity in mA
5...200 mA DC, 5...300 mA AC
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Output circuit type
AC/DC
Detection face
Frontal
Front material
PBT
Differential travel
1...15 % of Sr
Sensing range
> 40...60 mm
Switching frequency
<= 150 Hz
Residual current
1.5 mA open state
Current consumption
<= 10 mA no-load
Voltage drop
<5.5 V (closed)
Delay first up
15 MILLISECOND
Marking
CE
Delay response
0.3 MILLISECOND
Delay recovery
6 MILLISECOND
Product certifications
CCC
CSA
Ecolab
UL
CSA
Ecolab
UL
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.6 CENTIMETER
Package 1 weight
0.38 KILOGRAM
Package 1 length
13.2 CENTIMETER
Unit type of package 2
S01
Number of units in package 2
11
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.361 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
22
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
8.595 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Wiring Schemes
2-Wire NO Output
2-Wire NO Output
