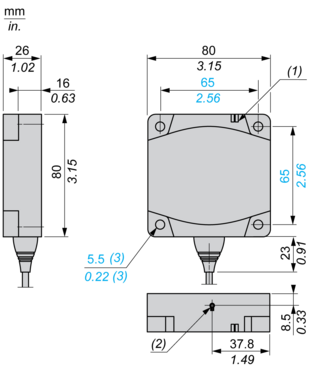

Technical Drawings
(1) LED
(2) Teach mode button
(3) For CHC type screws
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
e (1) | e (2) | e (3) | |
---|---|---|---|
Flush mounted | 200 | 400 | 40 |
Not flush mounted | 600 | not recommended |
Side by Side
Face to Face
Facing a Metal Object
NPN
BU : Blue
BN : Brown
BK : Black
