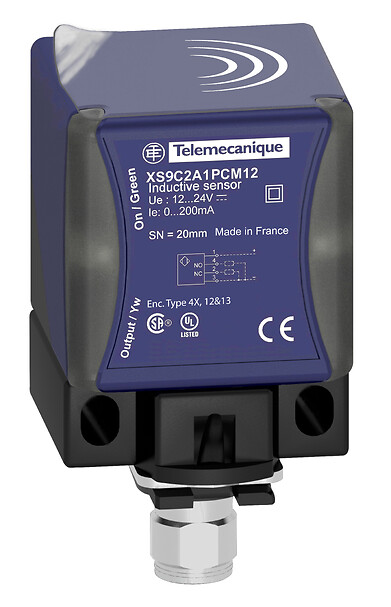

Technical Drawings
(1) : Pg 13.5 cable gland.
(2) : 2 holes Ø 5,45 mm / Ø 0.21 in. Tightening torque: < 1,5 Nm / < 13.3 Ib-in.
(3) : 3 screws M3,5. Tightening torque: < 1,2 Nm / < 10.6 Ib-in.
(4) : 2 alongated holes 5,4 x 7,4 mm / 0.21 x 0.29 in. Tightening torque: < 1,5 Nm / < 13.3 Ib-in".
Head Positions
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Side by Side
e (1) ≥ 120
Face to Face
e (2) ≥ 240
Facing a Metal Object
e (3) ≥ 90
2-Wire
Output current | Load impedance value | |
---|---|---|
12 V | 4...20 mA | R ≤ 82 Ω |
24 V | 4...20 mA | R ≤ 560 Ω |
(1) Output current
Ensure a minimum of 10 V between the + and the - (terminal 3)of the sensor
(Y) Output current (mA)
(X) Sensing distance (mm)
Expand all
Documents & Downloads
11/29/2023
195.3 kB
11/29/2023
195.3 kB
11/23/2023
3.4 MB
Expand all
Related products & accessoires

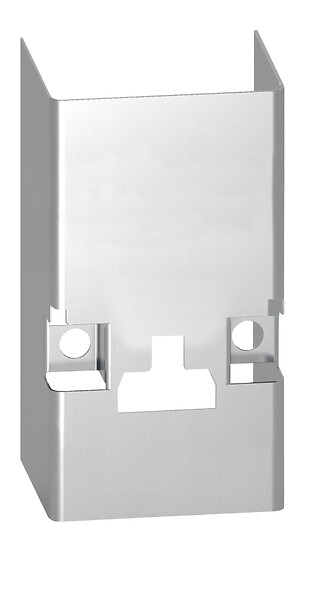

Accessory for sensor, IP68 outer cover, for XS7, XS8, XT7
