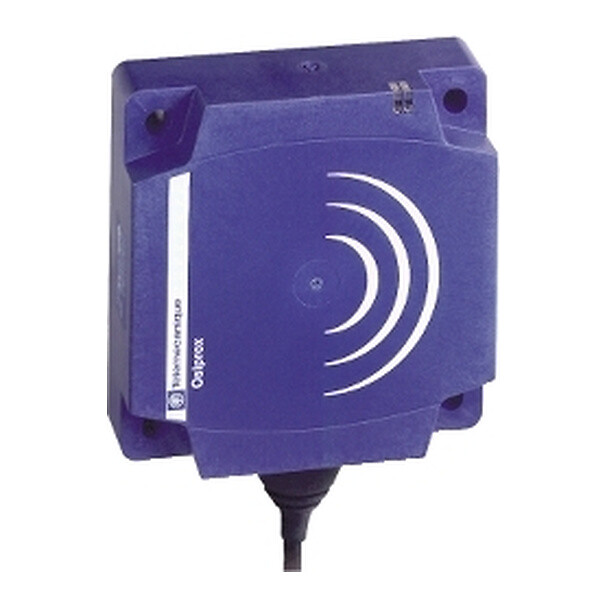

XS9D111A2L10
Inductive proximity sensors XS, inductive sensor XS9 80x80x26, PBT, Sn40mm, 24 VDC, cable 10 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS9
Sensor design
Flat form 80 x 80 x 26
Size
26 mm
Body type
Fixed
Enclosure material
PBT
Type of output signal
Analogue
Wiring technique
2-wire
Electrical connection
Cable
Analogue output range
4...20 mA
[Us] rated supply voltage
24 V DC
IP degree of protection
IP68 double insulation conforming to IEC 60529
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Detection face
Frontal
Front material
PBT
Repeat accuracy
<= 3% of Sr
Wire insulation material
PVC
Linearity error
+/- 2 mA
Cable composition
3 x 0.34 mm²
Sensing range
> 15...40 mm
Status LED
Without
Switching frequency
<= 100 Hz
Output current drift
10 PERCENTAGE
Current consumption
0...4 mA no-load
Marking
CE
Product certifications
CSA
UL
UL
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14.8 CENTIMETER
Package 1 width
8 CENTIMETER
Package 1 weight
0.555 KILOGRAM
Package 1 length
8 CENTIMETER
Unit type of package 2
CAR
Number of units in package 2
1
Package 2 height
14.8 CENTIMETER
Package 2 width
8 CENTIMETER
Package 2 length
8 CENTIMETER
Package 2 weight
0.555 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Wiring Schemes
2-Wire Connection
Output Curves
