XSAV11373TFEX

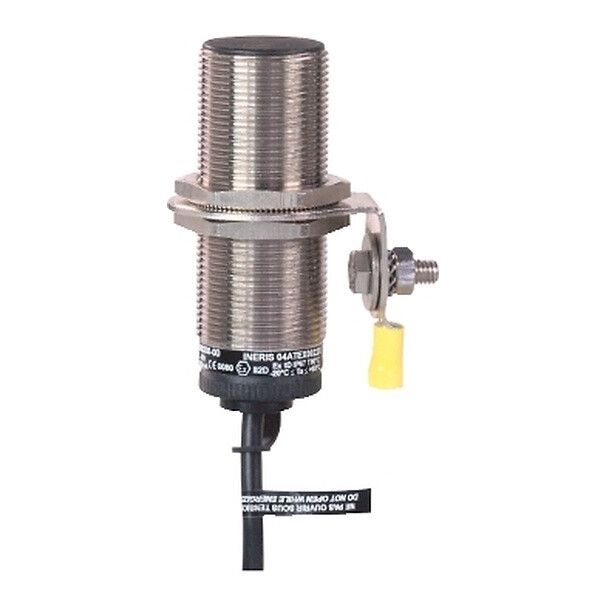

Inductive rotation sensor, XSAV, M30, Sn 10 mm, PNP, NC, cable 2 m, 6...150 c/min, 12...48 VDC, 3 wires, hazardous area dust, ATEX, rotation monitoring
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XSA
Device application
Rotation monitoring ATEX dust
Sensor design
Cylindrical M30
Size
30 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NC
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Metal
Electrical connection
Cable
Output circuit type
DC
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Differential travel
3...15% of Fr
Repeat accuracy
<= 3% of Sr
Cable composition
3 x 0.34 mm²
Status LED
Output state: 1 LED (red)
Wire insulation material
PVC
Switching frequency
<= 100 Hz
Voltage drop
<1.8 V (closed state)
Current consumption
0...15 mA no-load
Marking
II2 D-Ex tb IIIC T90°C Db IP67
Product certifications
IEC-Ex INE 17.0006
INERIS 04ATEX0022
INERIS 04ATEX0022
Standards
IEC 60079-0
IEC 60079-31
IEC 60079-31
Environmental characteristic
Hazardous location
Directives
2014/34/EU - ATEX directive
Dust zone
Zone 21 - 22
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.8 CENTIMETER
Package 1 width
19.1 CENTIMETER
Package 1 length
19.1 CENTIMETER
Package 1 weight
0.248 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.74 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
160
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
51.84 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
