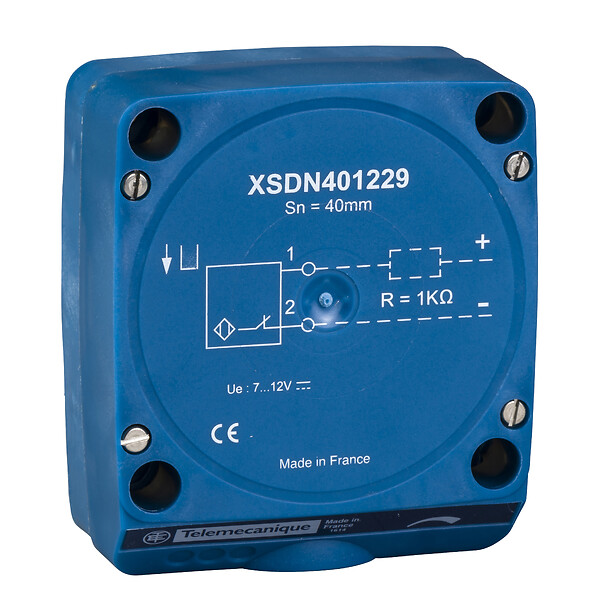

XSDN401229
Inductive proximity sensors XS, inductive sensor XSD, form D flat, Sn 40 mm, screw clamp terminals
End of commercialisation End of commercialization date : End of service date :
XSDN401229 is replaced by the following product:

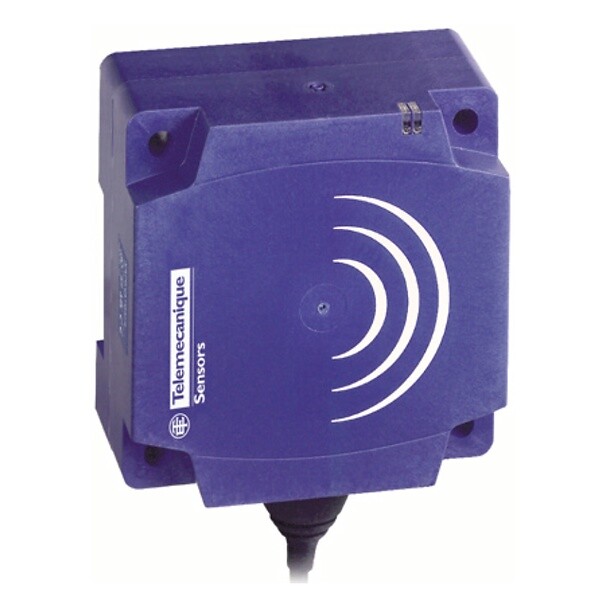

XS7D1A1DBL2
Inductive proximity sensors XS, inductive sensor XS7 80x80x26, PBT, Sn40mm, 12...24 VDC, cable 2 m
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XSD
Sensor design
Form 80 x 80 x 40
Size
40 mm
Body type
Fixed
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Screw-clamp terminals
[Us] rated supply voltage
12...240 V
IP degree of protection
IP67
Switching capacity in mA
5...100 mA DC, 5...500 mA AC
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Detection face
Frontal
Front material
Plastic
Switching frequency
<= 10 Hz
Marking
CE
Product certifications
CCC
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.5 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 weight
480 GRAM
Package 1 length
15 CENTIMETER
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
