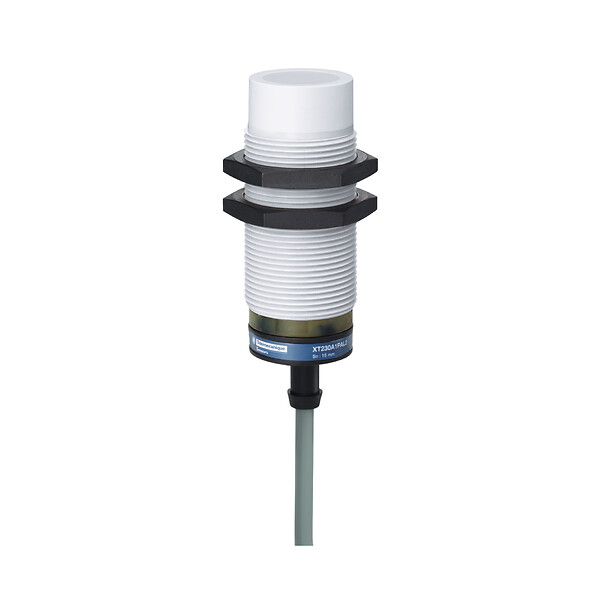

XT230A1FAL2
Capacitive sensor, XT, M30, plastic, Sn 15 mm, NO, cable 2 m, 24...240 VAC, non-flush, 2 wires
COMMERCIALISED
Expand all
Datasheet
Sensor name
XT2
Sensor type
Capacitive proximity sensor
Sensor design
Cylindrical M30
Product specific application
Detection of insulated or conductive materials
ETIM classification
ETIM 9 - EC002715 - Capacitive proximity switch
Body type
Fixed
Material
Plastic
Enclosure material
Plastic
[Sn] nominal sensing distance
15 mm
Wiring technique
2-wire
Detector flush mounting acceptance
Non flush mountable
Delay response
30 ms
ISO thread
M30 x 1.5
Product certifications
cULus
Marking
CE
Standards
IEC 60947-5-2
Indivisible sale quantity
1
Sensing range
8...15 mm
Repeat accuracy
< 5 % Sr
Electrical connection
Cable
Cable length
2 m
Wire insulation material
PVC
Supply voltage limits
20-265 V AC
[Us] rated supply voltage
24...240 V AC 50...60 Hz
Maximum switching current
300 mA
Voltage drop
<10 V (closed)
Current consumption
< 4 mA
Setting-up
Sensitivity by potentiometer
Status LED
Output state indication: 1 LED (yellow)
Output circuit type
AC
Type of output signal
Discrete
Length of developed helical travel
74.5 mm
Detection face
Frontal
Discrete output function
1 NO
Switching frequency
<= 25 Hz
Differential travel
< 1...20 % Sr
Delay first up
200 ms
Delay recovery
30 ms
Threaded length
48.5 mm
Size
74.5 mm
Product weight
0.27 kg
IP degree of protection
IP67 double insulation conforming to IEC 60529
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Resistance to fast transients
2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields
3 V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge
4 kV contact conforming to IEC 61000-4-2, 8 kV air conforming to IEC 61000-4-2
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
CN (China)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916020128
Package 1 height
2.79 cm
Package 1 width
13.46 cm
Package 1 length
14.73 cm
Package 1 weight
0.2 kg
Unit type of package 2
S02
Number of units in package 2
30
New Package 2 GTIN 14
13666916020125
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
5.018 kg
New Package 3 GTIN 14
23666916020122
Expand all
Technical Drawings
Dimensions
