XT512B1PAL2

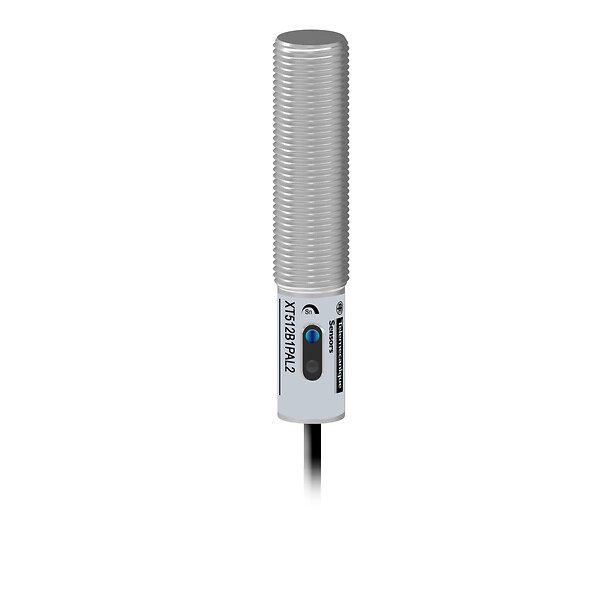

Capacitive sensor, XT5, M12, brass, Sn 2 mm, PNP, cable 2 m, 24 VDC
COMMERCIALISED
Expand all
Datasheet
Sensor name
XT5
Sensor type
Capacitive proximity sensor
Sensor design
Cylindrical M12
Product specific application
Detection of insulated or conductive materials
ETIM classification
ETIM 9 - EC002715 - Capacitive proximity switch
Body type
Fixed
Material
Nickel copper alloy
Enclosure material
Nickel copper alloy
[Sn] nominal sensing distance
2 mm
Wiring technique
3-wire
Detector flush mounting acceptance
Flush mountable
Delay response
15 ms
ISO thread
M12 x 1
Product certifications
cULus
Marking
CE
Standards
IEC 60947-5-2
UL 61010-1
UL 61010-1
Indivisible sale quantity
1
Sensing range
> 0...2.5 mm
Repeat accuracy
< 0.1 x Sr
Electrical connection
Cable
Cable length
2 m
Wire insulation material
PVC
Supply voltage limits
12-30 V DC
[Us] rated supply voltage
24 V DC with reverse polarity protection
Maximum switching current
200 mA
Electrical insulation class
Class III conforming to IEC 61140
Voltage drop
<2.5 V (closed)
Current consumption
< 15 mA
Setting-up
Sensitivity by potentiometer
Status LED
Output state indication: 1 LED (yellow)
Output circuit type
DC
Type of output signal
Discrete
Length of developed helical travel
63 mm
Detection face
Frontal
Discrete output function
1 NO
Switching frequency
<= 40 Hz
Differential travel
< 0.2 x Sr
Delay first up
300 ms
Delay recovery
15 ms
Residual current
0.1 mA open state
Threaded length
40 mm
Size
63 mm
Product weight
0.07 kg
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Resistance to fast transients
2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields
3 V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge
4 kV contact conforming to IEC 61000-4-2, 8 kV air conforming to IEC 61000-4-2
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
CN (China)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916020029
Package 1 height
1.5 cm
Package 1 width
12 cm
Package 1 length
14 cm
Package 1 weight
0.07 kg
Unit type of package 2
S02
Number of units in package 2
80
New Package 2 GTIN 14
13666916020026
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
6.931 kg
New Package 3 GTIN 14
23666916020023
Expand all
Technical Drawings

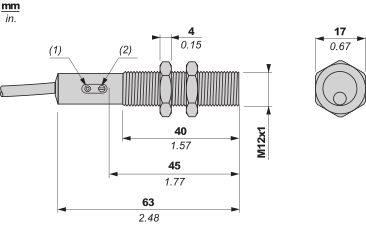

Dimensions
