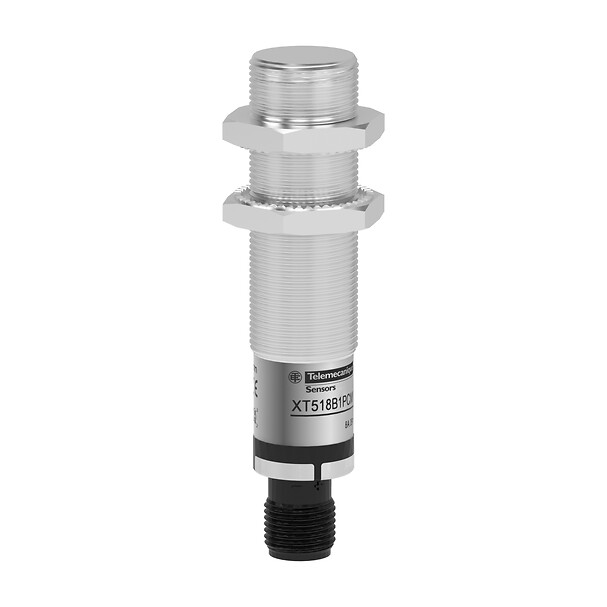

XT518B1PCM12

Capacitive proximity sensors XT, cylindrical M18, brass, 4-wire, Sn 5 mm, 24 V DC, 1 NC + 1 NO

arrow

Commercialised

Expand all

Datasheet

Sensor type
Capacitive proximity sensor
Product specific application
Detection of insulated or conductive materials
Sensor name
XT5
Sensor design
Cylindrical M18
Size
70 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Metal
Enclosure material
Nickel plated brass
Type of output signal
Discrete
Wiring technique
4-wire
Discrete output function
1 NC + 1 NO
Output circuit type
DC
Electrical connection
Male connector M12, 4 pins
[Us] rated supply voltage
24 V DC with reverse polarity protection
Delay response
15 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
ISO thread
M18 x 1
Detection face
Frontal
Differential travel
< 0.2 x Sr
Repeat accuracy
< 0.1 x Sr
Status LED
Output state indication: 1 LED (yellow), power status: 1 LED (green)
Residual current
0.1 mA open state
Switching frequency
<= 40 Hz
Voltage drop
<2.5 V (closed)
Current consumption
< 15 mA
Delay first up
300 MILLISECOND
Delay recovery
15 MILLISECOND
Marking
CE
Setting-up
Sensitivity by potentiometer
Standards
IEC 60947-5-2
UL 61010-1
Product certifications
cULus
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Electrical insulation class
Class III conforming to IEC 61140
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
120
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
7.709 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

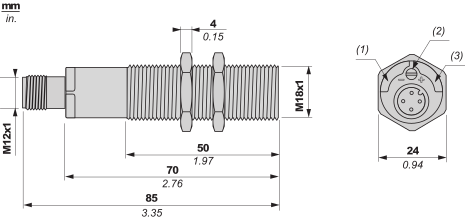

Dimensions

Dimensions

epds

Mounting and Clearance

Mounting and Clearance

Sensitivity adjustment

epds

Mounting and Clearance

Mounting and Clearance

Minimum Mounting Distances

epds

Minimum Mounting Distances

epds

Minimum Mounting Distances

epds

Connections and schema

Connections and schema

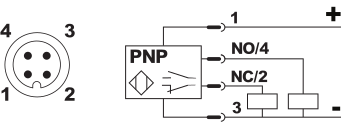

Wiring diagram

epds

Expand all

Related products & accessories

XUZA118

90° fixing bracket, Photoelectric sensors XU, accessory for sensor, Ø 18 mm, stainless steel

XUZE04

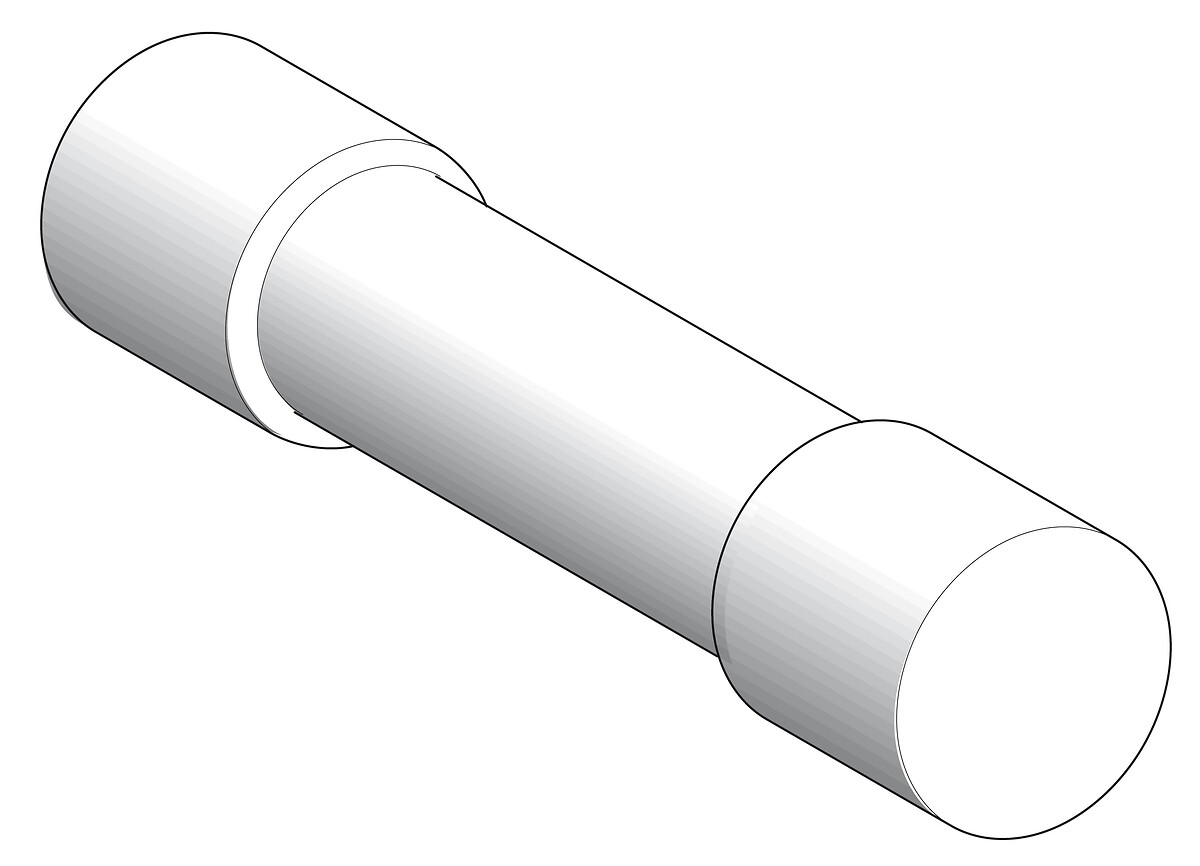

Photoelectric sensors XU, fuse cartridge 5 x 20, fast blow 0.4 A, without indication
