XU1N18PP341D
Photoelectric sensor XU1, stainless steel, reflex, Sn 4 m, 12...24 VDC, M12
END OF COMMERC ANNOUNCED End of commercialization date : December 31st 2026
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application food and beverage
Sensor name
XU1
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Kit composition
Reflector XUZC50
sensor
sensor
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002717 - Retroreflective photoelectric sensor
Material
Stainless steel
Lens material
PMMA
Enclosure material
Stainless steel : 304 CU
[Sn] nominal sensing distance
4-4 m reflex need reflector XUZC50
Maximum sensing distance
5.5 m with reflector 50 x 50 mm
Wiring technique
3-wire
Diameter
18 mm
Detection system
Reflex
Delay response
1 ms
Indivisible sale quantity
1
Sensing range
> 1...5 m
Electrical connection
1 male connector M12, 4 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 25 mA no-load
Emission
Infrared reflex
Setting-up
Without sensitivity adjustment
Output type
Solid state
Type of output signal
Discrete
Add on output
Without
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Status LED
1 LED (green) for supply on, 1 LED (yellow) for output state
Delay first up
15 ms
Delay recovery
1 ms
Length
72 mm
Product weight
0.085 kg
IP degree of protection
IP67 conforming to IEC 60529
Ambient air temperature for operation
-25…55 °C
Ambient air temperature for operation
-25-55 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916037324
Package 1 height
4.2 cm
Package 1 width
6.6 cm
Package 1 length
9.5 cm
Package 1 weight
0.084 kg
Unit type of package 2
S01
Number of units in package 2
11
New Package 2 GTIN 14
13666916037321
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
1.15 kg
New Package 3 GTIN 14
23666916037328
Expand all
Technical Drawings
Dimensions
Mounting and Clearance
Wiring Schemes
M12 Connector
Wiring Schemes
3-wire, PNP NO or NC Programmable Function
Detection Curves
Reflex System with Reflector XUZC50

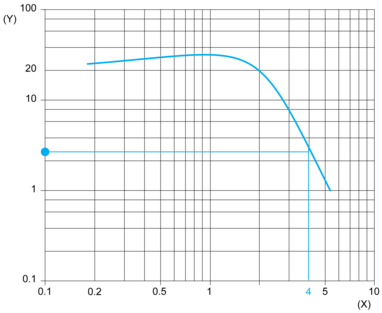

Excess Gain Curves (Ambient Temperature: + 25° C)
Reflex System with Reflector XUZC50
