XU2M18MA230WK

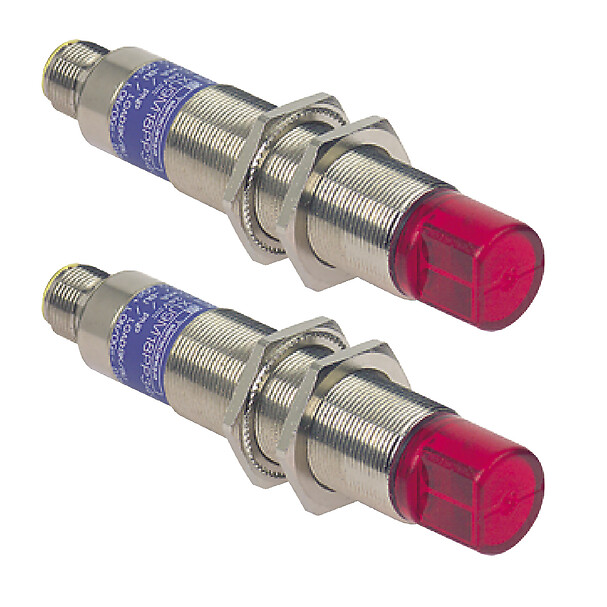

Photoelectric sensors XU, XU2, thru beam, 90°, Sn 15 m, 24...240VAC/DC, 1/2"
COMMERCIALISED
Expand all
Datasheet
Commercial Reference
XU2M18MA230WK
Medium description
Photoelectric sensors XU, XU2, thru beam, 90°, Sn 15 m, 24...240VAC/DC, 1/2"
Warranty
18 months
Country of origin
FR (France)
Length
110 MILLIMETER
Diameter
18 MILLIMETER
Emission
Infrared thru beam
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability
Add on output
Without
IP degree of protection
IP67 conforming to IEC 60529
Product weight
0.155 KILOGRAM
[Us] rated supply voltage
24...240 V AC/DC
Delay first up
300 MILLISECOND
Delay recovery
20 MILLISECOND
Delay response
20 MILLISECOND
Maximum voltage drop
<6 V (closed state)
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Density of package
0.399 GRAM_PER_CUBIC_CENTIMETER
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Electrical connection
1 male connector 1/2"20 UNF, 3 pins
Supply voltage limits
20-264 V AC/DC
Switching capacity in mA
10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load)
Maximum sensing distance
20 m
Ambient air temperature for operation
-25-55 °C
[Sn] nominal sensing distance
15-15 m thru beam
Ambient air temperature for storage max
70 CELSIUS
Ambient air temperature for storage min
-40 CELSIUS
Range of product
Telemecanique Photoelectric sensors XU
Material
Metal
Setting-up
Sensitivity adjustment
Output type
Solid state
Sensor name
XU2
Series name
General purpose single mode
Lens material
PMMA
Sensor design
Cylindrical M18
Kit composition
Transmitter + receiver XU2M18MC230WKT + XU2M18MA230WKR
Detection system
Thru beam
Sensing range
> 5...15 m
Enclosure material
Nickel plated brass
Line of sight type
90° lateral
Supply circuit type
AC/DC
Switching frequency
<= 25 Hz
Type of output signal
Discrete
Electronic sensor type
Photo-electric sensor
Wiring technique
2-wire
Discrete output function
1 NO
Product specific application
Not applicable
[BMEcat] Reach info
True
[BMEcat] RoHS indicator
True
California proposition
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EU RoHS 2011/65/EU compliance status
Compliant with exemption(s)
GTIN
3389110895704
Package 1 GTIN
3389110895704
Package 1 width
9.4 CENTIMETER
HS6 customs code (global)
853650
Package 1 height
4.1 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.2 KILOGRAM
Volume of package 1
501.02 CUBIC_CENTIMETER
Indivisible sale quantity
1
Number of units in package 1
1
Unit type of package 1
PCE
Package 1 bare product quantity
1
Expand all
Technical Drawings
Dimensions
Wiring Schemes
Connector
- 1 : Grounding
- 2 : AC/DC
- 3 : AC/DC
Wiring Schemes
2-wire AC or DC
- 1 : Grounding
- 2 : AC/DC
- 3 : AC/DC
Wiring Schemes
Transmitter
- 1 : Grounding
- 2 : AC/DC
- 3 : AC/DC
Detection Curves
Thru-beam System
