XU2N18KP9AAL5T

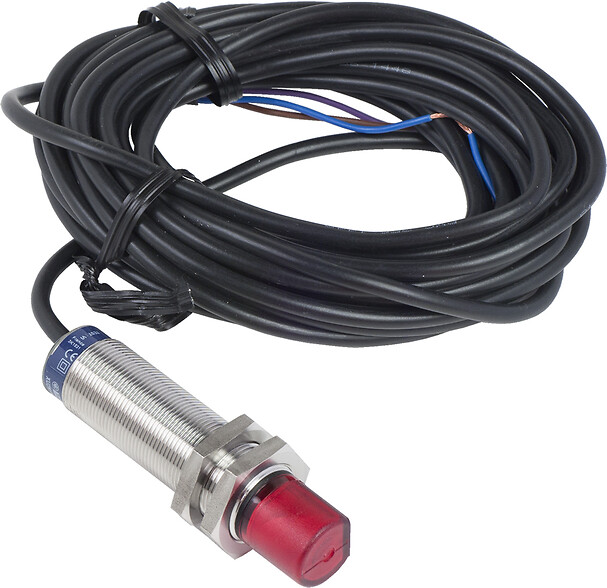

Photoelectric sensors XU, XU2, transmitteur, cylindrical M18, 15 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application food and beverage
Electronic sensor type
Photo-electric sensor
Sensor name
XU2
Sensor design
Cylindrical M18
Detection system
Thru beam
Material
Stainless steel
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
[Sn] nominal sensing distance
15-15 m thru beam
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Emission
Infrared thru beam
Enclosure material
Stainless steel : 304 CU
Lens material
PMMA
Output type
Solid state
[Us] rated supply voltage
24...240 V AC/DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 50 mA no-load
Delay first up
15 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
Sensitivity adjustment
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
14.8 CENTIMETER
Package 2 width
8.1 CENTIMETER
Package 2 length
8.1 CENTIMETER
Package 2 weight
240 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
