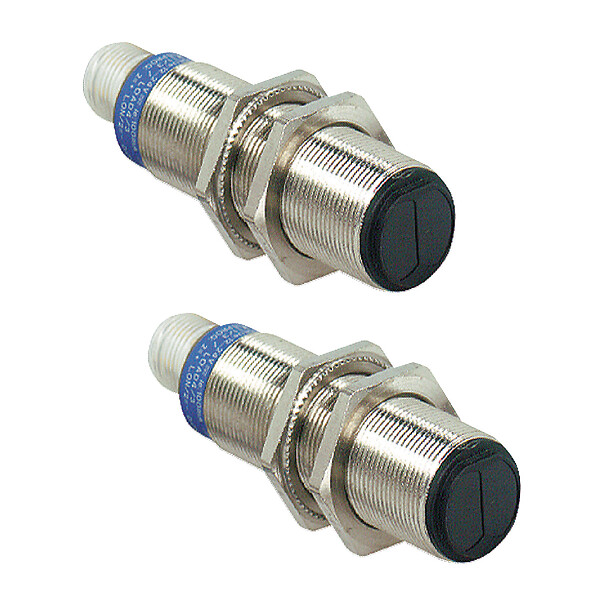

Technical Drawings
Transmitter's Dimensions
(1) LED
Receiver's Dimensions
(1) LED
Fixing nut tightening torque: < 15 N.m
Connector tightening torque: 2 N.m
M12 Connector
3 : (-)
1 : (+)
4 : OUT/Output
2 : Prog or beam break input (transmitter only)
Transmitter

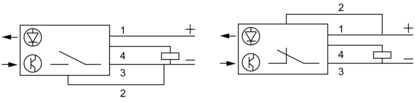

3-wire, PNP NO or NC Programmable Function
Beam Break Input on Thru-beam Transmitter
Beam Break Input on Thru-beam Transmitter
Beam made
Beam broken
2 : Beam break input
Thru-beam System
(y) Ø of beam
Thru-beam System
(y) Gain
(x) Distance (m)
