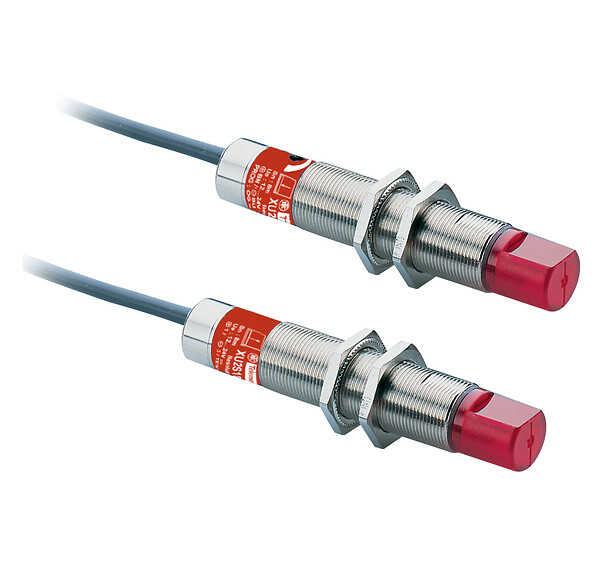

XU2S18PP340WL5
Photoelectric safety sensor XU2S, thru-beam, detection range 750...1200 mm, 12...24 V, detection of body
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Safety thru-beam pair photo-electric sensors
Device short name
XU2S
ETIM classification
ETIM 9 - EC002716 - Through beam photoelectric sensor
Material
-
Safety level
-
Safety reliability data
-
[Sn] nominal sensing distance
8-8 m
Detection system
Transmitter-receiver system
Line of sight type
90° to case axis
Delay response
1 ms
Marking
CE
Standards
IEC 60825-1
IEC 61496-1
IEC 61496-2
IEC 61496-1
IEC 61496-2
Indivisible sale quantity
1
Electrical connection
-
Cable length
5 m
Cable composition
-
[Us] rated supply voltage
-
Switching capacity in mA
-
Voltage drop
-
Current consumption
-
Cable outer diameter
5 mm
Output type
-
Tightening torque
-
Switching frequency
500 Hz maximum
Function available
-
Delay recovery
1 ms
Product weight
0.485 kg
IP degree of protection
-
Ambient air temperature for storage
-40…70 °C
Shock resistance
-
Vibration resistance
-
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916028940
Package 1 height
6.6 cm
Package 1 width
9.4 cm
Package 1 length
13 cm
Package 1 weight
0.485 kg
Unit type of package 2
S02
Number of units in package 2
14
New Package 2 GTIN 14
13666916028947
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
6.4 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916028944
Package 3 height
13 cm
Package 3 width
6.6 cm
Package 3 length
9.4 cm
Package 3 weight
0.433 kg
Expand all
Technical Drawings
Dimensions
Receiver
- (1) LED
- (2) Potentiometer
Dimensions
Transmitter
- (1) LED
- (2) Potentiometer
- (1) LED
- (2) Potentiometer
Wiring Schemes (3-wire DC)
Transmitter
- BU : Blue
- BN : Brown
- VI : Violet
- (1) Test
Wiring Schemes (3-wire DC)
Beam Break Test
- BU : Blue
- BN : Brown
- VI : Violet
- (1) Test
- BU : Blue
- BN : Brown
- VI : Violet
Beam Break Test
- BU : Blue
- BN : Brown
- VI : Violet
- (1) Test
- BU : Blue
- BN : Brown
- VI : Violet
- BU : Blue
- BN : Brown
- VI : Violet
Wiring Schemes (3-wire DC)
Receiver
- BU : Blue
- BN : Brown
- VI : Violet
- (1) Test
- BU : Blue
- BN : Brown
- VI : Violet
- BU : Blue
- BN : Brown
- VI : Violet
- BN : Brown
- BU : Blue
- BK : Black
- OG : Orange
Receiver
- BU : Blue
- BN : Brown
- VI : Violet
- (1) Test
- BU : Blue
- BN : Brown
- VI : Violet
- BU : Blue
- BN : Brown
- VI : Violet
- BN : Brown
- BU : Blue
- BK : Black
- OG : Orange
- BN : Brown
- BU : Blue
- BK : Black
- OG : Orange

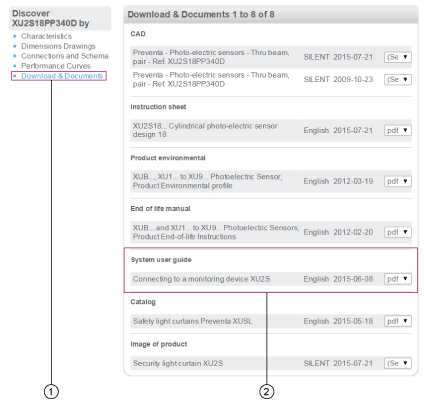

Connecting to a Safety Module
- 1 : Click on Download & Documents
- 2 : Click on System user guide
Curves
Infrared Detection Curve
- (1) Ø of beam
Curves
Verification of Correct Operation
- (1) Ø of beam
- (1) LED off
- (2) LED on
- (3) Red LED
- (4) Signal level
- (5) Optimum alignment
