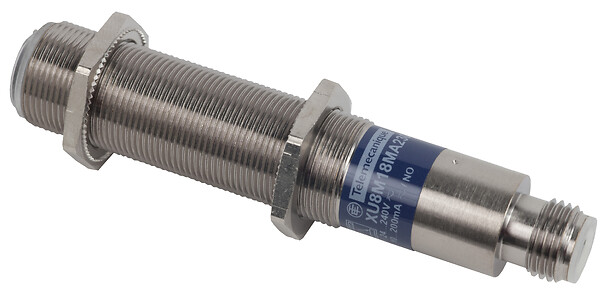

XU8M18MA230K

Photoelectric sensors XU, XU8, BGS, Sn 0.12 m, 24...240VAC/DC, 1/2"

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Technical Drawings

Dimensions

epds

Wiring Schemes

Connector

epds
  • 1 : Grounding
  • 2 : AC/DC
  • 3 : AC/DC

Wiring Schemes

2-wire AC or DC

epds
  • 1 : Grounding
  • 2 : AC/DC
  • 3 : AC/DC

Detection Curves

Diffuse System with Adjustable Background Suppression

epds
  • 1 : White 90%
  • 2 : Grey 18%

Detection Curves

Variation of Usable Sensing Distance Su

epds
  • 1 : White 90%
  • 2 : Grey 18%

Variation of Usable Sensing Distance Su

epds
  • 1 : White 90%
  • 2 : Grey 18%
  • A-B : Object reflection coefficient
  • (1) Black 6%
  • (2) Grey 18%
  • (3) White 90%
  • (4) Sensing range
  • (5) Non sensing zone (matt surfaces)
