XU8M18MA230W

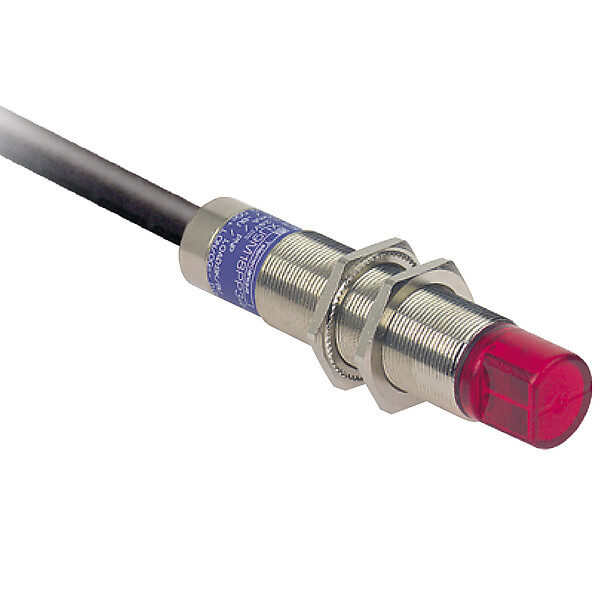

Photoelectric sensor XU8, BGS, 90°, Sn 0.12 m, 24...240 VAC/DC, cable 2 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Sensor name
XU8
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002719 - Light scanner with background masking
Material
Metal
Lens material
PMMA
Enclosure material
Nickel plated brass
[Sn] nominal sensing distance
0.12-0.12 m diffuse with background suppression
Maximum sensing distance
0.12 m
Wiring technique
2-wire
Diameter
18 mm
Detection system
Diffuse with background suppression
Delay response
20 ms
Indivisible sale quantity
1
Sensing range
> 0...0.3 m
Electrical connection
Cable
Cable length
2 m
Supply voltage limits
20-264 V AC/DC
[Us] rated supply voltage
24...240 V AC/DC
Supply circuit type
AC/DC
Switching capacity in mA
10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load)
Maximum voltage drop
<6 V (closed state)
Emission
Infrared diffuse with background suppression
Setting-up
Sensitivity adjustment
Output type
Solid state
Type of output signal
Discrete
Add on output
Without
Discrete output function
1 NO
Status LED
1 LED (yellow) for output state
Delay first up
300 ms
Delay recovery
20 ms
Length
97 mm
Product weight
0.15 kg
IP degree of protection
IP67 double insulation conforming to IEC 60529
Ambient air temperature for operation
-25…55 °C
Ambient air temperature for operation
-25-55 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916037065
Package 1 height
13.2 cm
Package 1 width
9.4 cm
Package 1 length
4.2 cm
Package 1 weight
0.15 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916037062
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.386 kg
New Package 3 GTIN 14
23666916037069
Expand all
Technical Drawings
Dimensions
Wiring Schemes
2-wire AC or DC
- BU : Blue
- BN : Brown
Detection Curves
Diffuse System with Adjustable Background Suppression
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Variation of Usable Sensing Distance Su
- 1 : White 90%
- 2 : Grey 18%
Variation of Usable Sensing Distance Su
- 1 : White 90%
- 2 : Grey 18%
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
