XU9M18MB230W

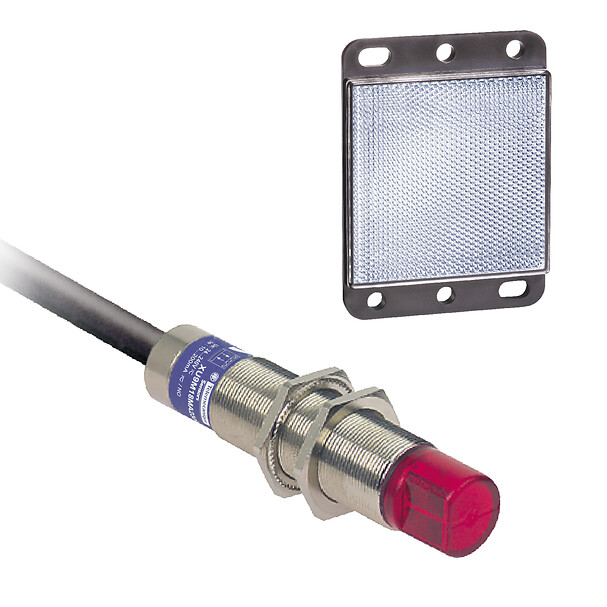

Photoelectric sensors XU, XU9, polarised, 90°, Sn 2 m, 24...240VAC/DC, cable 2 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XU9
Sensor design
Cylindrical M18
Detection system
Polarised reflex
Sensing range
> 1...5 m
Material
Metal
Line of sight type
90° lateral
Type of output signal
Discrete
Supply circuit type
AC/DC
Wiring technique
2-wire
[Sn] nominal sensing distance
2-2 m polarised reflex need reflector XUZC50
Discrete output function
1 NC
Electrical connection
Cable
Product specific application
Not applicable
Emission
Red polarised reflex
Enclosure material
Nickel plated brass
Lens material
PMMA
Output type
Solid state
Add on output
Without
Wire insulation material
PvR
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability
[Us] rated supply voltage
24...240 V AC/DC
Residual current
-
Switching capacity in mA
10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load)
Switching frequency
<= 25 Hz
Maximum voltage drop
<6 V (closed state)
Delay first up
300 MILLISECOND
Delay response
20 MILLISECOND
Delay recovery
20 MILLISECOND
Setting-up
Sensitivity adjustment
Kit composition
Reflector XUZC50
sensor
sensor
Supply voltage limits
20-264 V AC/DC
Ambient air temperature for operation
-25-55 °C
Product certifications
CE
CSA
UL
CSA
UL
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.6 CENTIMETER
Package 1 length
13.2 CENTIMETER
Package 1 weight
0.154 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
11
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.903 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
22
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
