XU9N18PP341D

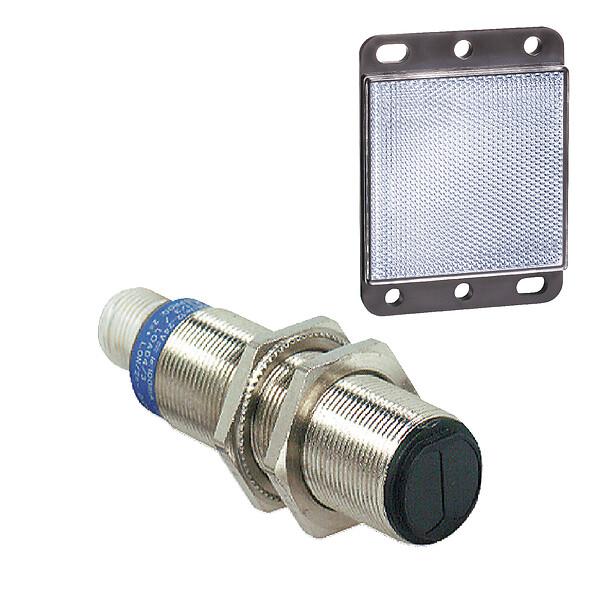

Photoelectric sensors XU, XU9, polarised, Sn 2 m, 12...24 VDC, M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application food and beverage
Electronic sensor type
Photo-electric sensor
Sensor name
XU9
Sensor design
Cylindrical M18
Detection system
Polarised reflex
Material
Stainless steel
Line of sight type
Axial
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M12, 4 pins
Product specific application
Not applicable
Emission
Red polarised reflex
Enclosure material
Stainless steel : 304 CU
Lens material
PMMA
Output type
Solid state
Add on output
Without
Add on input
Programmation
Cable composition
4 x 0.34 mm²
Wire insulation material
PvR
Status LED
1 LED (green) for supply on, 1 LED (yellow) for output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
500 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 30 mA no-load
Delay first up
15 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
Without sensitivity adjustment
Kit composition
Reflector XUZC50
sensor
sensor
Product certifications
CE
CSA
UL
CSA
UL
Vibration resistance
25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
11
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.268 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Mounting and Clearance
Wiring Schemes
M12 Connector
Wiring Schemes
3-wire, PNP NO or NC Programmable Function
Detection Curves
Polarised Reflex System with Reflector XUZC50

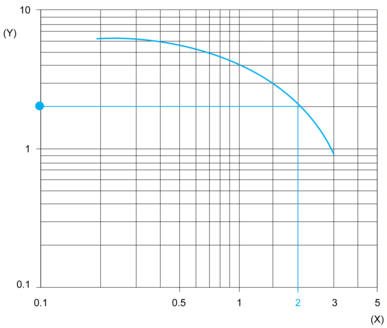

Excess Gain Curves (Ambient Temperature: + 25° C)
Polarised Reflex System with Reflector XUZC50
