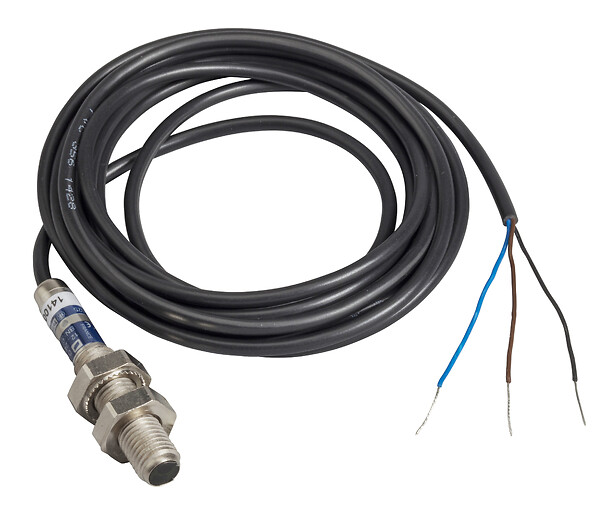

XUAH0525
Photoelectric sensors XU, XUA, diffuse, Sn 0.05 m, 12...24 VDC, cable 2 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application assembly
Electronic sensor type
Photo-electric sensor
Sensor name
XUA
Sensor design
Cylindrical M8
Detection system
Diffuse
Material
Metal
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
[Sn] nominal sensing distance
0.05-0.05 m diffuse
Discrete output type
PNP
Discrete output function
1 NC
Electrical connection
Cable
Product specific application
Not applicable
Emission
Infrared diffuse
Enclosure material
Nickel plated brass
Lens material
Polyamide
Output type
Solid state
Add on output
Without
Cable composition
3 x 0.14 mm²
Status LED
1 LED (yellow) for output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
<1 V (closed state)
Current consumption
<= 25 mA no-load
Delay first up
20 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Without sensitivity adjustment
Vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
11 CENTIMETER
Package 1 weight
52 GRAM
Unit type of package 2
S01
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
682 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

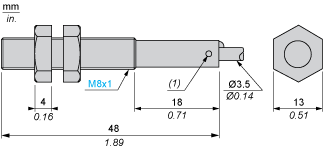

Dimensions
- (1) LED, 4 viewing ports at 90°
- Note : Fixing nut tightening torque : <2N.m
Wiring Schemes
PNP
- BN : Brown
- BU : Blue
- BK : Black

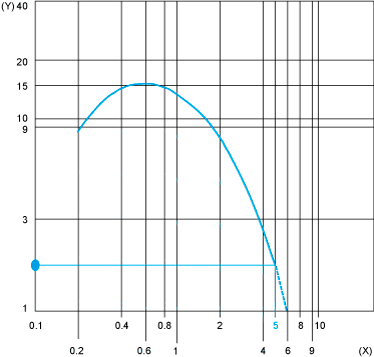

Detection Curves
- 1 : White 90%
- 2 : Grey 18%

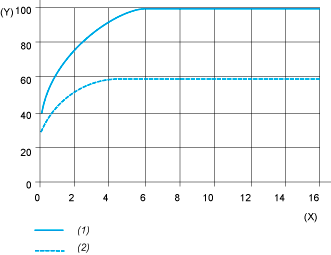

Excess Gain Curves (Ambient temperature: ± 25 °C)
- (Y) Gain
- (X) Distance (m)
- (Y) Gain
- (X) Distance (m)
- (1) White
- (2) Grey
- (Y) Variation of sensing distance Sn
- (X) Side of square object (cm)
