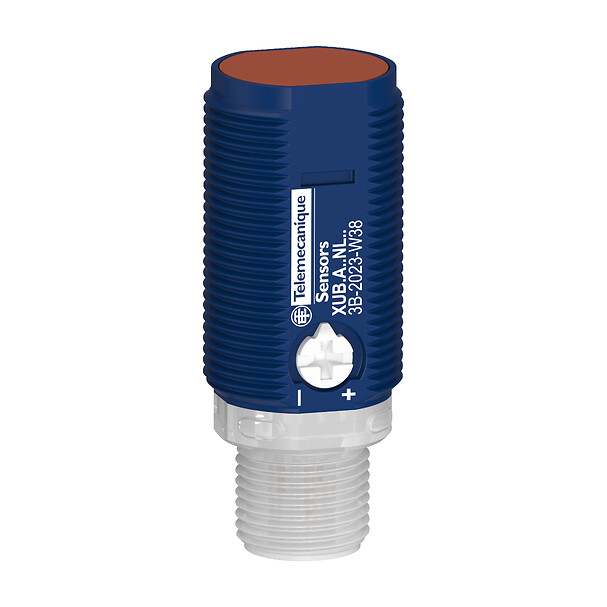

XUB2APYNM12R
Photoelectric sensors XU, Photo electric sensor, Cylindrical, Plastic, Thru-beam, Receiver, Smax 30m, IO-Link, Connector M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor receiver
Sensor name
XUB
Sensor design
Cylindrical M18
Detection system
Thru beam
Material
Plastic
Line of sight type
Axial
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
4 wires
[Sn] nominal sensing distance
20-20 m thru beam need a transmitter XUB2AKXNM12T
Discrete output type
IOLINK
PNP/NPN autodetect
PNP/NPN autodetect
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M12, 4 pins
Emission
Red LED thru beam
Enclosure material
PC/PBT
Lens material
PMMA
Output type
Discrete
Status LED
1 LED (green) for supply on/stability, 1 LED (orange) for output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
1000 Hz
Maximum voltage drop
<2 V (closed state)no-load
Current consumption
< 30 mA no load
Delay first up
300 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Sensitivity by IO-Link
sensitivity by potentiometer
sensitivity by potentiometer
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.8 CENTIMETER
Package 1 width
1.6 CENTIMETER
Package 1 length
4.4 CENTIMETER
Package 1 weight
0.04 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
48
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.92 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
768
Package 3 height
70 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
44.26 KILOGRAM
Indivisible sale quantity
1
