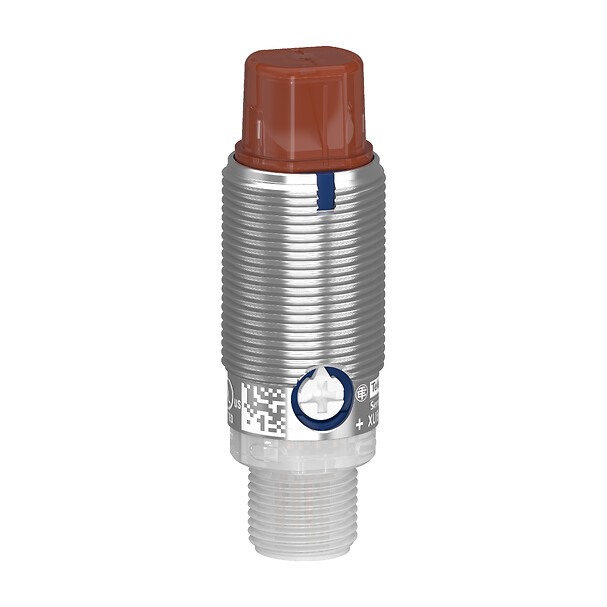

XUB2BPXWM12R

Telemecanique Photoelectric sensors XU

General purpose single mode

Photo-electric sensor receiver

XUB

Cylindrical M18

Thru beam

0...17 m

Metal

90° lateral

Discrete

DC

4 wires

12-12 m thru beam need a transmitter XUB2BKXWM12T

PNP

1 NO or 1 NC programmable

1 male connector M12, 4 pins

Red LED thru beam

PC/PBT

PMMA

Discrete

1 LED (green) for supply on/stability, 1 LED (orange) for output state

12...24 V DC with reverse polarity protection

<= 100 mA (overload and short-circuit protection)

1000 Hz

<2 V (closed state)no-load

< 20 mA no load

100 MILLISECOND

0.5 MILLISECOND

0.5 MILLISECOND

Sensitivity by potentiometer

10-30 V DC

40000 lux sunlight, 10000 lux incandescent light

-30-55 °C

35-95 %

7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6

30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27

IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050-9

PCE

1

1.8 CENTIMETER

1.6 CENTIMETER

4.4 CENTIMETER

0.04 KILOGRAM

S02

48

15 CENTIMETER

30 CENTIMETER

40 CENTIMETER

2.92 KILOGRAM

P06

768

70 CENTIMETER

60 CENTIMETER

80 CENTIMETER

44.26 KILOGRAM

1
