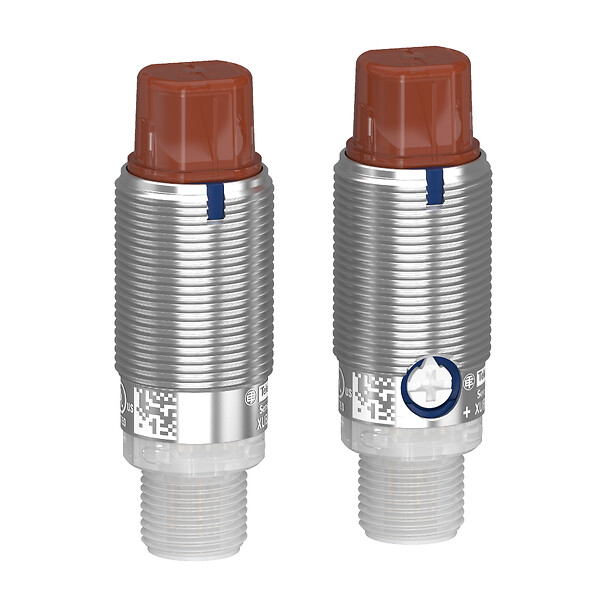

XUB2BPYWM12

Telemecanique Photoelectric sensors XU

XUB

General purpose single mode

PC/PBT

Photo-electric sensor

Cylindrical M18

Metal

1 male connector M12, 4 pins

4 wires

Thru beam

Red LED thru beam

1 NO or 1 NC programmable

12...24 V DC with reverse polarity protection

Discrete

90° lateral

DC

1000 Hz

IOLINK
PNP/NPN autodetect

0.5 MILLISECOND

Sensitivity by IO-Link
sensitivity by potentiometer

< 20 mA no load

Discrete

<= 100 mA (overload and short-circuit protection)

PMMA

1 LED (green) for transmitter/supply on, 1 LED (green) for receiver/supply on/stability, 1 LED (orange) for receiver/output

0...17 m

<2 V (closed state)no-load

300 MILLISECOND

0.5 MILLISECOND

30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27

IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050-9

7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov

PCE

1

1.8 CENTIMETER

1.6 CENTIMETER

4.4 CENTIMETER

0.04 KILOGRAM

S02

48

15 CENTIMETER

30 CENTIMETER

40 CENTIMETER

2.92 KILOGRAM

P06

768

70 CENTIMETER

60 CENTIMETER

80 CENTIMETER

44.26 KILOGRAM

1
