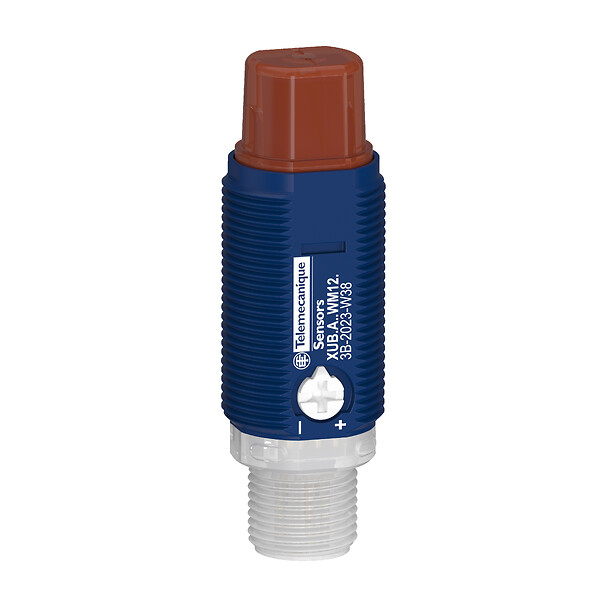

XUB6APYWM12
Photoelectric sensors XU, Photo electric Sensor, Cylindrical, Plastic, Angled, Diffuse Medium, Smax 0.5 m, IO-Link, Connector M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUB
Sensor design
Cylindrical M18
Detection system
Diffuse
Material
Plastic
Line of sight type
90° lateral
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
4 wires
[Sn] nominal sensing distance
0.35-0.35 m diffuse
Discrete output type
PNP/NPN autodetect
IOLINK
IOLINK
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M12, 4 pins
Emission
Red LED diffuse
Enclosure material
PC/PBT
Lens material
PMMA
Output type
Discrete
Status LED
1 LED (green) for supply on/stability, 1 LED (orange) for output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
1000 Hz
Maximum voltage drop
<2 V (closed state)no-load
Current consumption
< 20 mA no load
Delay first up
300 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Sensitivity by potentiometer
sensitivity by IO-Link
sensitivity by IO-Link
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.8 CENTIMETER
Package 1 width
1.6 CENTIMETER
Package 1 length
4.4 CENTIMETER
Package 1 weight
40 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
48
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.22 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
768
Package 3 height
70 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
44.26 KILOGRAM
Indivisible sale quantity
1
