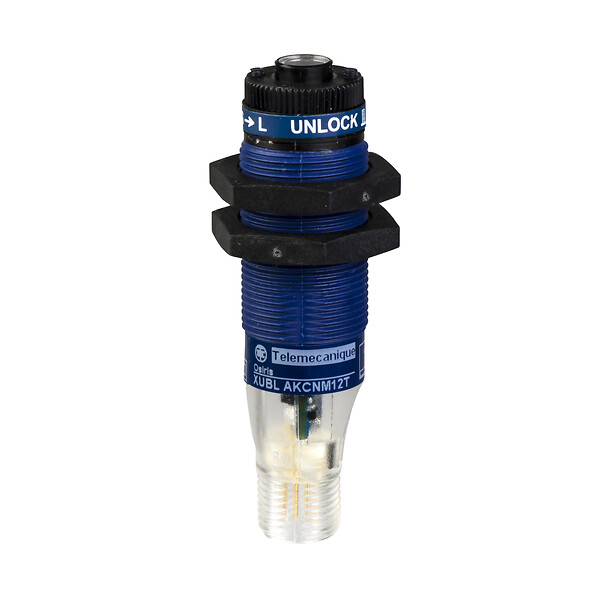

Photoelectric sensors XU, XUB, emitter, laser, 12...24 VDC, M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUB
Series name
Application material handling
Product specific application
Not applicable
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor transmitter
Sensor design
Cylindrical M18
Electrical connection
1 male connector M12, 4 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Thru beam
Emission
Red laser thru beam class 1 670 nm conforming to IEC 60825-1
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Delay response
0.4 MILLISECOND
Current consumption
25 mA no-load
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Status LED
1 LED (green) for supply on
Sensing range
> 30 m
Maximum voltage drop
<1.5 V (closed state)
Delay first up
80 MILLISECOND
Delay recovery
0.4 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 double insulation conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.4 CENTIMETER
Package 1 width
7.4 CENTIMETER
Package 1 length
12.8 CENTIMETER
Package 1 weight
0.041 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
35
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.796 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13 CENTIMETER
Package 3 width
3.6 CENTIMETER
Package 3 length
7 CENTIMETER
Package 3 weight
0.042 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Mounting
Adjustment
- (1) Adjust the focusing point of the laser beam by rotating the serrated sleeve
- (2) Located on the face of the sensor. Re-tighten fixing screws
Wiring Schemes
M12 Connector
- 1 : (+)
- 2 : Beam break input
- 3 : (-)
Wiring Schemes
Transmitter
- 1 : (+)
- 2 : Beam break input
- 3 : (-)
- BN : Brown
- BU : Blue
- Input 2/VI : Not connected: beam made, connected to (-): beam broken
Curves
Detection Curve (Set to Infinity)
Curves
Excess Gain Curve
- (X) Distance (m)
- (Y) Gain
Curves
Standard Curve
- (X) Distance (m)
- (Y) Gain
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
Curves
Detection Limit Curve
- (X) Distance (m)
- (Y) Gain
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
Expand all
