XUBT1PSNM12

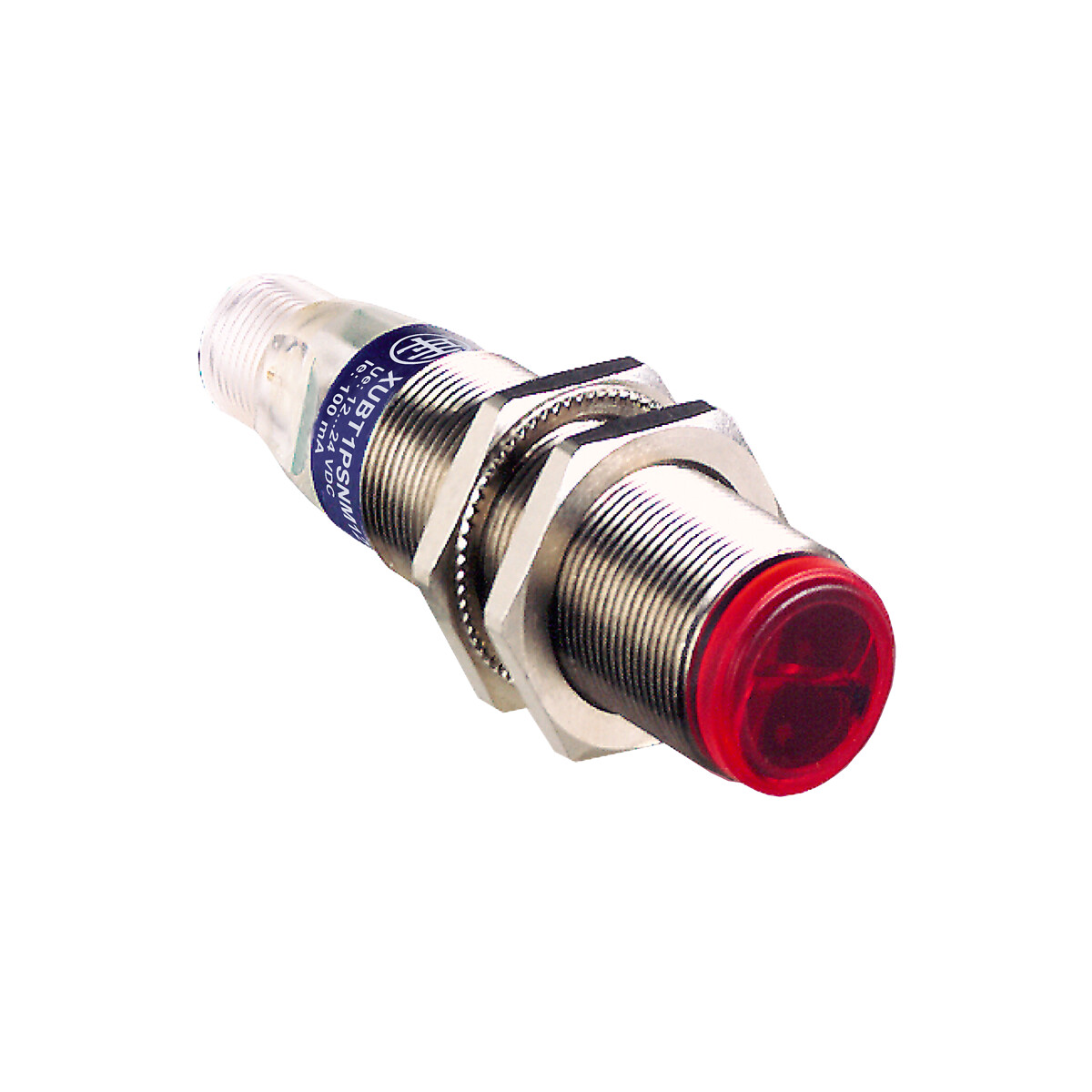

Photoelectric sensor XUBT, plastic, reflex, transparent material, Sn 0...0.8 mm, M12, NO/NC, PNP
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Sensor name
XUBT1
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Kit composition
Reflector XUZC50
sensor
sensor
Product specific application
Detection of transparent object
ETIM classification
ETIM 9 - EC002717 - Retroreflective photoelectric sensor
Material
Plastic
Lens material
PMMA
Enclosure material
PBT
[Sn] nominal sensing distance
0-0.8 m need reflector XUZC50
Wiring technique
3-wire
Detection system
Reflex
Delay response
2000 ms
Indivisible sale quantity
1
Sensing range
> 0.3...1 m
Electrical connection
1 male connector M12, 4 pins
Supply voltage limits
10-32 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<1.5 V (closed state)
Current consumption
30 mA no-load
Emission
Dual lens red reflex
Status LED
-
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Blind zone
100 mm
Spot diameter
37 mm
Delay first up
2000 ms
Delay recovery
2000 ms
Product weight
0.045 kg
IP degree of protection
IP65 conforming to IEC 60529 (double insulation), IP67 conforming to IEC 60529 (double insulation)
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
ID (Indonesia)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916032732
Package 1 height
4.2 cm
Package 1 width
9.5 cm
Package 1 length
6.5 cm
Package 1 weight
0.045 kg
Unit type of package 2
S01
Number of units in package 2
22
New Package 2 GTIN 14
13666916032739
Package 2 height
15 cm
Package 2 width
40 cm
Package 2 length
15 cm
Package 2 weight
1.572 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916032736
Package 3 height
4.2 cm
Package 3 width
9.5 cm
Package 3 length
6.5 cm
Package 3 weight
0.046 kg
