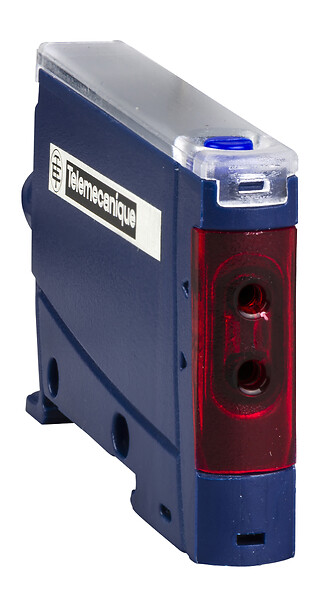

XUDA1PSMM8
Photoelectric sensors XU, XUD, M8, PVC, PNP, discrete solid state
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application assembly
Specific application of photoelectric detector
Object
Sensor name
XUD
Sensor design
Fiber design
Electronic sensor type
Photo-electric sensor
Wiring technique
3-wire
Enclosure material
PBT
Type of output signal
Discrete
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Discrete output type
PNP
Electrical connection
-
Supply circuit type
DC
Cable material
PVC
Status LED
-
[Us] rated supply voltage
-
Switching capacity in mA
-
Voltage drop
-
Current consumption
<= 50 mA no-load
Add on output
Without
Delay first up
120 MILLISECOND
Delay response
0.5 MILLISECOND
Setting-up
Sensitivity adjustment with teach mode
Lens material
PMMA
Interference protection
Without
IP degree of protection
-
Vibration resistance
+/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, 7 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
8.2 CENTIMETER
Package 1 length
8.7 CENTIMETER
Package 1 weight
0.038 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
45
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.084 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
