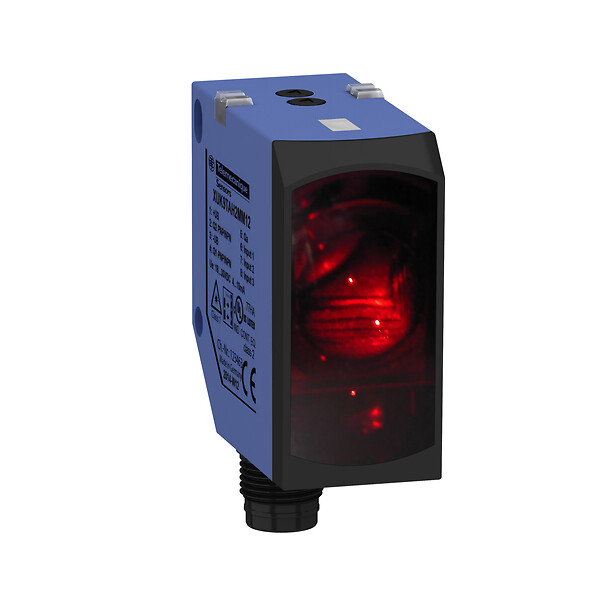

XUE5AA2NM12
Photoelectric sensors XU, XUE, BGS, measurement, Sn 6 m, 24 VDC, M12
END OF COMMERCIALISATION End of commercialization date : February 02nd 2022 End of service date : February 02nd 2022
XUE5AA2NM12 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUE
Series name
Application material handling
Product specific application
Distance measurement on object
Enclosure material
ABS, anti-shock
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 90 x 90
Electrical connection
1 male connector M12, 5 pins
Material
Plastic
Wiring technique
5-wire
Detection system
Diffuse
Emission
-
Discrete output function
2 NO/NC programmable
[Us] rated supply voltage
24 V DC with reverse polarity protection
Supply circuit type
DC
Discrete output type
PNP
Analogue output range
-
Setting-up
Parametering by buttons
Current consumption
125 mA no-load
Status LED
-
Switching capacity in mA
100 mA (overload and short-circuit protection)
Lens material
PMMA
Linearity
<= +/- 40 mm
Spot dimension
-
Sensing range
> 5...15 m
Voltage drop
<2.4 V (closed state)
Delay response
13 ms fast mode, 80 ms slow mode
Switching time
-
Delay first up
80 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60947-5-2
IP degree of protection
IP67 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 0.5 mm (f = 10-55 Hz) conforming to IEC 60947-5-2
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.5 CENTIMETER
Package 1 width
16 CENTIMETER
Package 1 length
23 CENTIMETER
Package 1 weight
342 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Dimensions with Fixing Bracket XUZA618
Wiring Schemes
M12 Connector
Wiring Schemes
Output
Curves
Minimum Size of Detectable Object Related to Distance
Curves
Light Spot Size (Not Visible)
Expand all
