XUFN01321

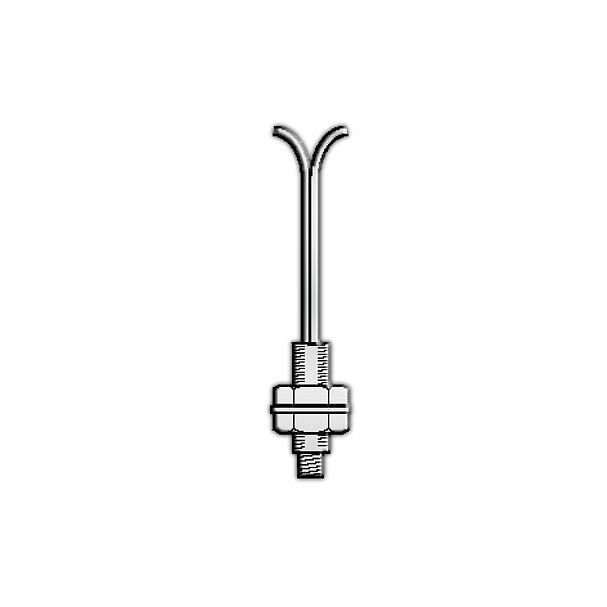

Photoelectric sensors XU, plastic fibre optic for sensor, diffuse, positioning, standard, 2 m, Sn18mm
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUF
End fitting type
M2.6 x 0.45, standard thread end fitting
Sensor design
Fiber design
Product destination
XUDA
Electronic sensor type
Photo-electric sensor
Optic fiber material
PMMA
Sheath material
PE
Detection system
Diffuse
Optic fiber use
Positioning
Optic fiber core
2 x Ø 0.5 mm
Vibration resistance
7 gn (f= 10-55 Hz) conforming to IEC 60068-2-27
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP64 conforming to IEC 60529, IP641 conforming to NF C 20-010
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.8876 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
