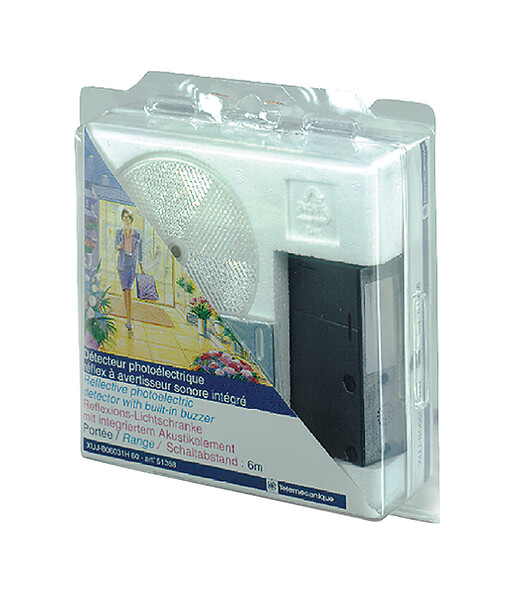

XUJB06031H60
Photoelectric sensors XU, XUJ, reflex, kit, Sn 6 m, 24...240VAC/DC, terminals
END OF COMMERC ANNOUNCED End of commercialization date : December 31st 2026 End of service date : December 31st 2026
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUJ
Series name
Application tertiary sector
Product specific application
Buzzer signalling
Enclosure material
PEI
Electronic sensor type
Photo-electric sensor
Sensor design
Compact
Electrical connection
Screw-clamp terminals, maximum : 1 x 1.5 mm²
Material
Plastic
Wiring technique
4-wire
Detection system
Reflex
Cable entry
1 entry for Pg 9 cable gland
Emission
-
Discrete output function
1 NO
[Us] rated supply voltage
24...240 V AC, 24...48 V DC
Type of output signal
Discrete
Supply circuit type
AC/DC
Delay response
25 MILLISECOND
Status LED
-
Output type
Relay
Switching capacity in mA
0.5 A (cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V), 2 A (cos φ = 1 for 1 million cycles at 1 operating cycle per second)
Time delay range
0.3...3 s
Output voltage
-
Delay first up
60 MILLISECOND
Delay recovery
25 MILLISECOND
Maximum power consumption in W
-
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP40 double insulation conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6 CENTIMETER
Package 1 width
18 CENTIMETER
Package 1 length
20 CENTIMETER
Package 1 weight
0.339 KILOGRAM
Unit type of package 2
S04
Number of units in package 2
24
Package 2 height
30 CENTIMETER
Package 2 width
40 CENTIMETER
Package 2 length
60 CENTIMETER
Package 2 weight
8.941 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Sensor Dimensions
Dimensions

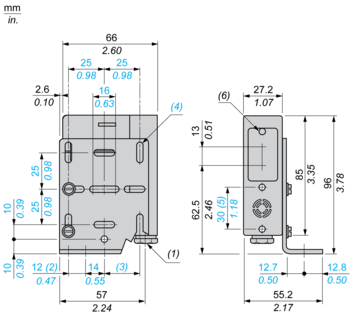

Bracket Fixing
Wiring Schemes
NO Function
Wiring Schemes
Terminal Connections
Curves
Detection Curve
Curves

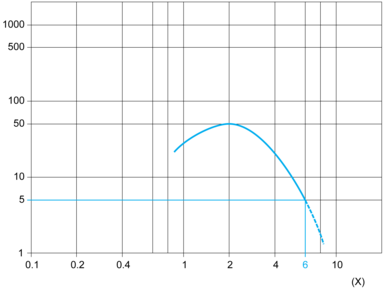

Excess Gain Curves (Ambient Temperature: + 25° C)
