XUJK803538
Photoelectric sensors XU, XUJ, diffuse, analog, Sn 0.8 m, 12...24 VDC, terminals
END OF COMMERC ANNOUNCED End of commercialization date : December 31st 2026 End of service date : December 31st 2026
XUJK803538 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUJ
Sensor design
Compact
Detection system
Diffuse
Sensing range
> 0.3...1 m
Material
Plastic
Type of output signal
Analogue
Supply circuit type
DC
Wiring technique
3-wire
[Sn] nominal sensing distance
0.2-0.8 m diffuse
Discrete output type
PNP
Analogue output range
-
Electrical connection
Screw-clamp terminals, 1 x 2.5...2 x 1.5 mm²
Product specific application
Not applicable
Emission
Infrared diffuse
Enclosure material
PEI
Output type
Solid state
Add on output
With analogue output
Status LED
1 LED (yellow) for output state
[Us] rated supply voltage
12...24 V DC
Output voltage
0...10 V DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 35 mA no-load
Delay first up
15 MILLISECOND
Delay response
2 MILLISECOND
Delay recovery
2 MILLISECOND
Setting-up
Without sensitivity adjustment
Supply voltage limits
20-30 V DC
Ambient air temperature for operation
-25-55 °C
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 double insulation conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.7 CENTIMETER
Package 1 width
11.1 CENTIMETER
Package 1 length
16.5 CENTIMETER
Package 1 weight
0.214 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.89 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
16.5 CENTIMETER
Package 3 width
4.7 CENTIMETER
Package 3 length
11.1 CENTIMETER
Package 3 weight
0.214 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

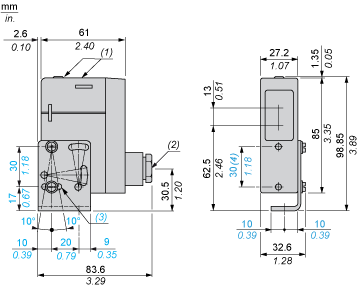

Dimensions
- (1) LED
- (2) 11P cable gland
- (3) 1 elongated hole Ø 4.2 x 14
- (4) Front fixing (Ø 4 screws and inserts included)
Wiring Schemes
Diffuse System
- 1 : (-)
- 3 : (+)
- 5 : Output current
- 6 : (-)
Diffuse System
- 1 : (-)
- 3 : (+)
- 5 : Output current
- 6 : (-)
- 1 : (-)
- 3 : (+)
- 4 : Output voltage
- 6 : (-)
Curves
Output Signal (Related to Distance of Object). Test Performed with 20 x 20 cm, White 90% Object
Output Signal (Related to Distance of Object). Test Performed with 20 x 20 cm, White 90% Object
- (1) Forbidden zone
