XUK1ARCNL2H61
Photoelectric sensors XU, XUK, reflex, kit, Sn 7 m, 24...240VAC/DC, cable 2 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application tertiary sector
Electronic sensor type
Photo-electric sensor
Product specific application
Access detection
Sensor name
XUK
Additional information
French/german leaflet
Sensor design
Compact 50 x 50
Material
Plastic
Detection system
Reflex
Emission
-
Wiring technique
5-wire

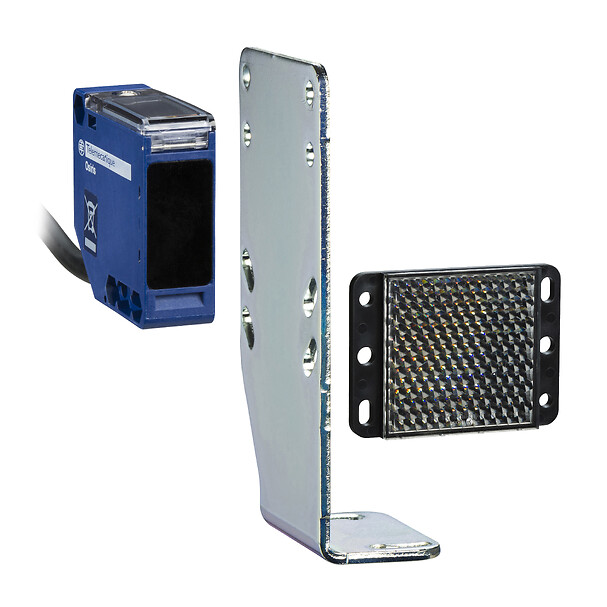

Kit composition
50 x 50 mm reflector
fixing bracket
mounting instructions
reflex system photo-electric sensor
fixing bracket
mounting instructions
reflex system photo-electric sensor
Enclosure material
PBT
Type of output signal
Discrete
Lens material
PMMA
Output type
Relay
Discrete output type
1 C/O
Electrical connection
Cable
Status LED
-
Supply circuit type
AC/DC
[Us] rated supply voltage
24...240 V AC/DC with reverse polarity protection
Output voltage
-
Switching capacity in mA
0,125
Maximum power consumption in W
-
Delay first up
60 MILLISECOND
Delay response
25 MILLISECOND
Delay recovery
25 MILLISECOND
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529 (double insulation)
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S03
Number of units in package 2
8
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.359 KILOGRAM
Unit type of package 3
P12
Number of units in package 3
64
Package 3 height
45 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
120 CENTIMETER
Package 3 weight
38.872 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Mounting Precautions
Rigid Fixing for Trouble Free Detection
Mounting Precautions
Outdoor Mounting under Protective Cover
Wiring Schemes
5-Wire AC or DC

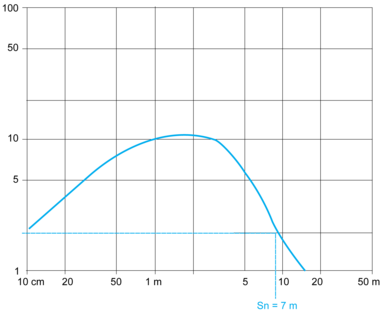

Detection Curves
Reflex System AC or DC
Detection Curves
Reflex System AC or DC
